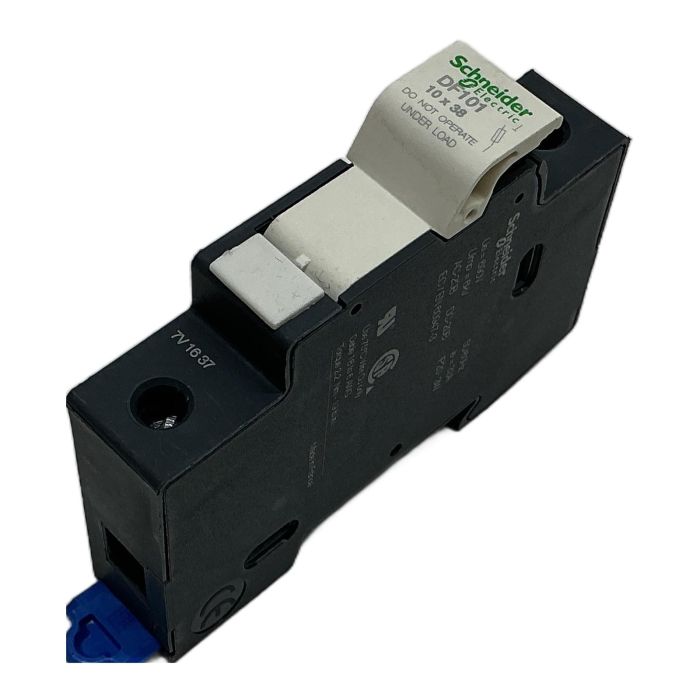

Schneider Electric Fuse Holder 32A 10x38mm DF101

Description

The Schneider Electric DF101 is a single-pole fuse holder from the TeSys range, designed for robust protection of industrial electrical circuits. This fuse-disconnector is engineered for 10x38mm fuses and supports a rated current of up to 32A. Its compact design allows for easy mounting on a standard 35mm DIN rail, making it a versatile solution for control panels and distribution boards. The warning 'DO NOT OPERATE UNDER LOAD' indicates it is intended for circuit isolation in a de-energized state.

Specifications

• Manufacturer: Schneider Electric
• Type: DF101
• Product Range: TeSys DF
• Function: Fuse-disconnector
• Poles: 1P (1-pole)
• Rated Operational Current (Ie): 32A
• Rated Operational Voltage (Ue): 690V AC
• Rated Impulse Withstand Voltage (Uimp): 6kV
• Fuse Size: 10 x 38 mm
• Mounting: 35mm DIN rail
• IP Protection: IP20
• Standards: IEC/EN 60947-3

Label Info

• AC-20B / DC-20B
• Torque: 2.2 Nm / 19 lb.in.
• Use 75deg.C Cu Wire Only

Application

Ideal for providing overcurrent protection in various industrial applications, including motor control circuits, automation systems, and power distribution panels where reliable circuit isolation is required for maintenance.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned item, you are contributing to a circular economy and helping to reduce CO2 emissions. This single unit saves approximately 2.52 kg of CO2, which is comparable to the emissions from driving a car for 12 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The DF101 is specifically designed for cylindrical fuses of size 10x38mm. It can be used with gG or aM type fuses up to its rated current of 32A, depending on the protection requirements of the application.

Yes, the product label indicates it is rated for both AC-20B and DC-20B utilization categories. Always refer to the official Schneider Electric datasheet for specific DC voltage and current ratings, as these may differ from the AC ratings.

This warning indicates that the DF101 is a fuse-disconnector, not a load-break switch. It is designed to isolate a circuit for maintenance only when the circuit is already de-energized. Opening the fuse holder while current is flowing can cause a dangerous electric arc, potentially damaging the equipment and posing a safety risk to the operator.
