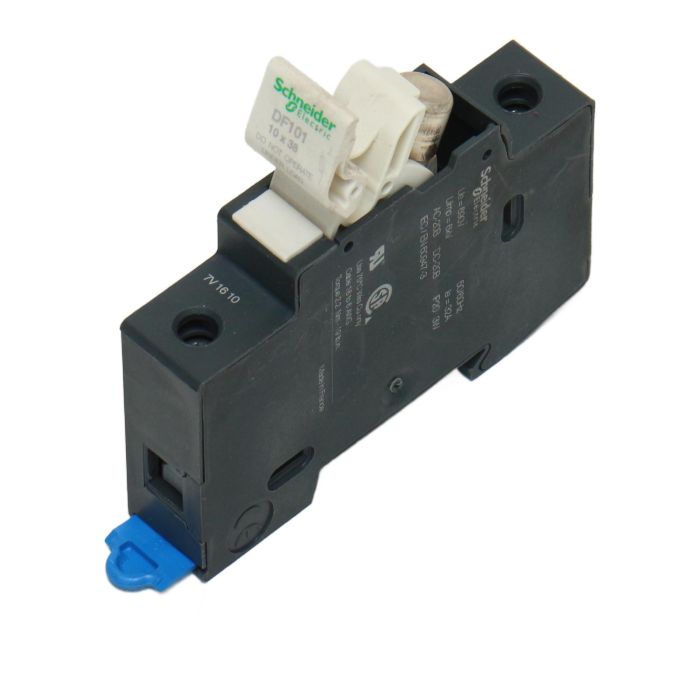

Schneider Electric DF101 Fuse Holder - 1P - 32A - 10x38mm

Product Description

Schneider Electric DF101: TeSys - Fuse holder - 1P -32A - Fuse size: 10x38mm. Includes 1 Fuse.

Product Specifications

Product Type: Fuse holder
Device Type: 1 Pole
Current Rating: 32A
Fuse Size: 10 x 38 mm
Fuse Type: aM, gG
Control Type: Switch lockable with padlock
Utilization Category: AC-20B, DC-20B
Operating Voltage: 690V AC, 690V DC
Maximum Business Flow: 32A at 400V AC
Conventional Thermal Flow: 32A at <20°C
Insulation Voltage: 690V AC
Shock Wave Voltage: 6kV

Product Label Info

Model Code / Product Markings: DF101

Schneider, Electric, Ue= 690V, Uimp = 6kV, AC-20B DC-20B, EC/EN 60947-3, 9, SP, Use 75°C Wire Cu only, Cable 18 to 6 AWG, Torque 2.2 Nm - 19 lb.in., 50/60Hz, Ie = 32A, P20 3W, Made in France

EAN (GTIN-13): 3389119407205

Application

This fuse holder is suitable for various industrial applications where reliable circuit protection is required.

Country of Origin

This product is manufactured in France.

Method of Application

Install the fuse holder in accordance with the provided guidelines to ensure proper functionality and safety.

Safety Instructions

Ensure proper insulation and wiring practices are followed during installation. Use only with compatible fuses and within specified voltage and current ratings.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Schneider Electric
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the Schneider Electric DF101 Fuse Holder used for?

This fuse holder is typically used in industrial control panels to provide overcurrent protection for electrical circuits.

What are the key advantages of the Schneider Electric DF101 Fuse Holder?

The DF101 offers a reliable and secure way to protect electrical circuits from overloads and short circuits.

Is Schneider Electric DF101 compatible with my system?

If your system requires a 1P fuse holder with a 10x38mm fuse size and a current rating of 32A, then the DF101 is likely compatible. Contact us for further verification.

Alternatives to Schneider Electric DF101

If you're looking for alternatives, consider other fuse holders with similar specifications from Schneider Electric or other reputable manufacturers.

Can I sell my surplus stock to PLC2DAY?

Yes, PLC2DAY accepts surplus stock and offers solutions for inventory clearance or resale. Contact us with details of your surplus stock for further assistance.
