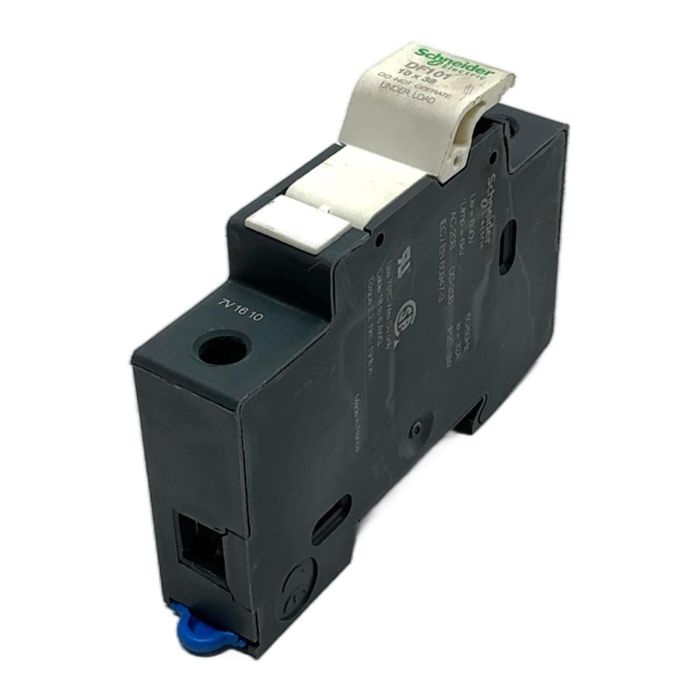

Schneider Electric Fuse Holder 32A 10x38mm DF101

Description

The Schneider Electric DF101 is a high-quality, single-pole fuse holder designed for reliable circuit protection in industrial applications. Part of the TeSys range, this fuse disconnector is built for 10x38mm fuses and supports a rated current of up to 32A. It features a compact design for easy DIN rail mounting and is compliant with IEC/EN 60947-3 standards, ensuring safety and performance. Its robust construction makes it suitable for both AC and DC circuits.

Specifications

• Manufacturer: Schneider Electric
• Model: DF101
• Poles: 1-Pole
• Rated Operational Voltage (Ue): 690V AC
• Rated Operational Current (Ie): 32A
• Fuse Size: 10 x 38 mm
• Mounting: 35mm DIN Rail
• Standards: IEC/EN 60947-3
• IP Rating: IP20

Label Info

• Uimp: 6kV
• Utilization Category: AC-20B, DC-20B
• Frequency: 50/60Hz
• Power Dissipation: 3W

Application

Ideal for protecting motors, transformers, and other electrical loads in industrial control panels, automation systems, and machinery. Its reliable performance ensures the safety and longevity of your equipment.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned component, you are contributing to the circular economy and have helped avoid approximately 2.4 kg of CO2 emissions that would have been generated from manufacturing a new part.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The DF101 is designed specifically for cylindrical fuses of size 10 x 38 mm. It is compatible with fuse types aM and gG.

Yes, the DF101 has a DC-20B utilization category rating, making it suitable for use in DC circuits. Always refer to the datasheet for specific voltage and current limitations in DC applications.

The terminals can accept copper wires ranging from 18 to 6 AWG (American Wire Gauge), which corresponds to approximately 1 to 16 mm squared. The recommended tightening torque is 2.2 Nm.
