Schneider Electric Compact NSX160F Molded Case Circuit Breaker

Description

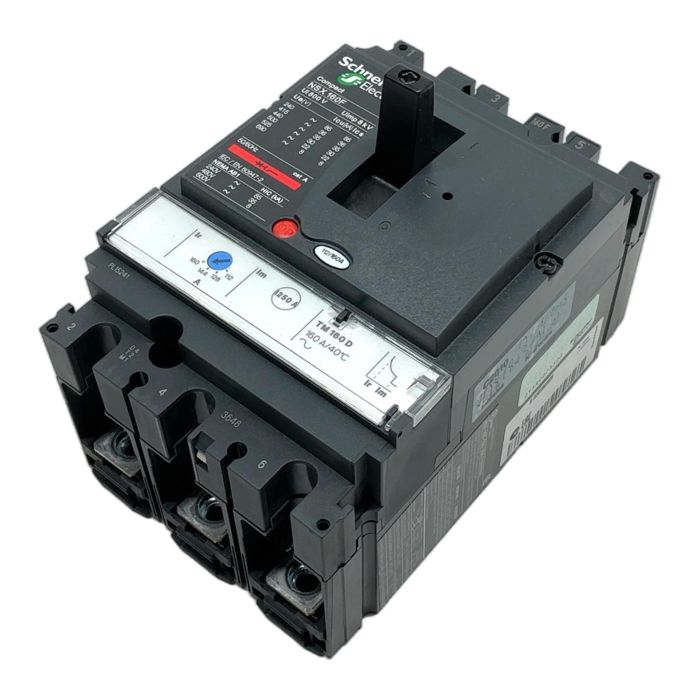

The Schneider Electric Compact NSX160F, model LV430630, is a 3-pole molded case circuit breaker (MCCB) engineered for superior performance in electrical distribution systems. This unit comes with an integrated TM160D thermal-magnetic trip unit, providing adjustable thermal protection and fixed magnetic protection against overloads and short circuits. It is a reliable solution for protecting equipment and personnel in demanding industrial and commercial environments.

Specifications

• Manufacturer: Schneider Electric
• Product Range: ComPact NSX
• Model: NSX160F
• Part Number: LV430630
• Rated Current (In): 160 A at 40 deg C
• Poles: 3-Pole (3P)
• Trip Unit: TM160D (Thermal-Magnetic)
• Breaking Capacity (Icu): 36 kA at 415V AC
• Rated Insulation Voltage (Ui): 800 V AC

Label Info

• Frame: LV430403
• Trip Unit: LV430430

Application

Ideal for use in main switchboards, sub-distribution panels, and for motor protection applications. Its robust design ensures continuous operation and safety for industrial machinery, commercial buildings, and infrastructure projects.

Country of Origin

This product is manufactured in Poland by Schneider Electric.

CO2 Impact

By opting for this reused component, you are preventing the emission of approximately 64 kg of CO2. This saving is comparable to the emissions from a 320-kilometer car journey, supporting a more sustainable industrial ecosystem.

Availability

This item is in stock and ready for immediate dispatch. The product is new and unused, supplied in its original, opened box with accessories. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the adjustment range of the TM160D trip unit?
The TM160D trip unit has an adjustable thermal (overload) protection setting (Ir) ranging from 0.7 to 1 times the rated current. For this 160A unit, the adjustable range is from 112A to 160A. The magnetic (short-circuit) protection is fixed.

Can this circuit breaker be used in a DC system?
While the ComPact NSX series has models suitable for DC applications, this specific model, LV430630 with a TM-D trip unit, is primarily designed and rated for AC systems (50/60 Hz). For DC applications, you should consult the Schneider Electric catalog for a specifically rated DC model.

Is the breaking capacity (Icu) the same at all voltages?
No, the breaking capacity varies with the operating voltage (Ue). For the NSX160F model, the Icu is 85 kA at 220/240V AC, 36 kA at 380/415V AC, 35 kA at 440V AC, and 8 kA at 690V AC. Always verify the required breaking capacity for your specific installation voltage.
