Reliable Modicon CCX17 HMI Operator Panel

Description

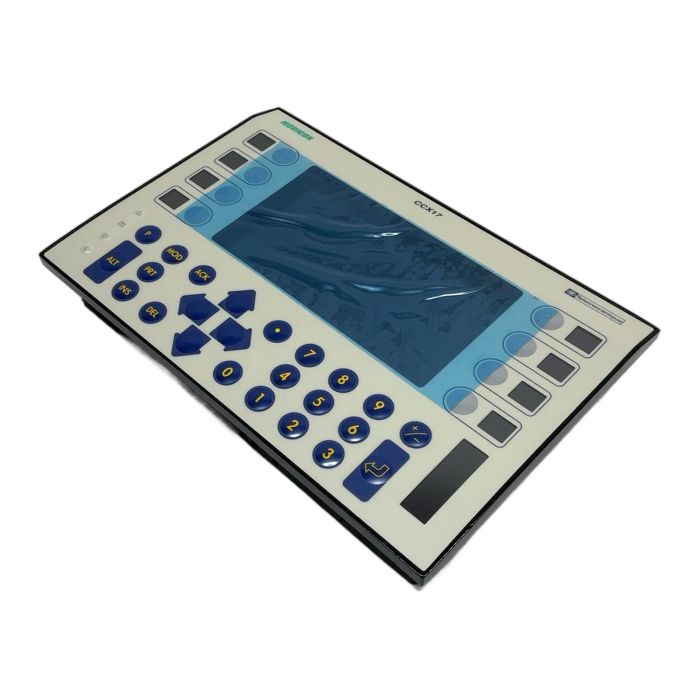

This is a Schneider Electric Modicon CCX17 operator dialogue terminal, part number TCCX1730LFPR. This robust, text-based HMI panel is designed for dependable interaction with Modicon PLC systems. It serves as an essential replacement part for maintaining legacy automation systems. This item is a refurbished exchange unit, professionally inspected and ready for deployment.

Specifications

• Brand: Schneider Electric Modicon
• Model: CCX17
• Part Number: TCCX1730LFPR
• Product Type: HMI Operator Dialogue Terminal
• Display: 2 lines, 20 characters, backlit LCD
• Keyboard: 26 keys (10 numeric, 16 function)
• Communication Port: RS-485
• Supply Voltage: 24V DC
• Condition: Refurbished/Exchange Unit

Label Info

• Part Number: TCCX1730LFPR
• Serial Number: 21090511022
• Production Version: PV:05
• Hardware Version: V2.0
• Country of Origin: Made in France

Application

The Modicon CCX17 is designed for operator dialogue with Modicon TSX Micro, Premium, and other compatible PLCs. It is suitable for machine control, process monitoring, and parameter adjustment in various industrial environments.

Country of Origin

France

CO2 Impact

Choosing refurbished parts like this one prevents waste and reduces the carbon footprint associated with new manufacturing. This single unit saves approximately 20.0 kg of CO2, which is comparable to the emissions from driving a standard car for 100 kilometers.

Availability

In stock and ready for immediate dispatch. As an obsolete component, availability is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question? What PLCs is the Modicon CCX17 compatible with?

The CCX17 operator panel is primarily designed for use with the Schneider Electric Modicon PLC family, including the TSX Micro and TSX Premium series. It typically communicates via a serial link (RS-485).

Configuration for the CCX17 is typically done within the PLC programming software, such as PL7 Pro or Unity Pro, depending on the connected PLC. It does not require separate, standalone HMI programming software like modern touch panels.

Yes, the TCCX1730LFPR should be a direct physical and functional replacement for other CCX17 series terminals. However, always ensure the firmware version and communication settings match your existing application to avoid integration issues.
