• Product name: TeSys CAD50BD
• Product or component type: Control relay
• Device short name: CAD
• Application contactor: Control circuit
• Utilization category: AC-14, DC-13, AC-15
• Composition of pole contact: 5 normally open
• Your assigned operating voltage: <= 690 V AC 25...400 Hz
• Type of control circuit: DC standard
• Voltage control circuit: 24VDC
• Uimp assigned shock wave voltage: 6 kV
• Ith conventional thermal flow in free air: 10 A (at 60 °C)
• Irms nominal making capacity: 140 A AC, 250 A DC
• Icw short duration current: 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms
• Associated fuse rating: 10 A gG
• Ui rated insulation voltage: 600 V UL certified, 600 V CSA certified, 690 V
• Mounting support: Rail, Plate
• Connections - terminals: Screw clamp connections
• Tightening torque: 1.2 Nm
• Control circuit voltage limits: 0.1...0.25 Uc -40...70 °C dropout DC, 0.7...1.25 Uc -40...60 °C operational DC, 1...1.25 Uc 60...70 °C operational DC
• Operating time: 53...72 ms coil activation and normally open gap, 16...24 ms coil deactivation and normally open gap
• Mechanical durability: 30 Mcycles
• Maximum operating speed: 180 cyc/min
• Time constant: 28ms
• Inrush current in W: 5.4 W
• Hold-in power consumption in W: 5.4 W
• Minimum switching voltage: 17 Q
• Minimum switching current: 5mA
• Non-overlap time: 1.5 ms
• Insulation resistance: > 10 MOhm
• Mechanical strength: Shocks control relay open: 10 Gn for 11 ms, Shocks control relay closed: 15 Gn for 11 ms, Vibrations control relay open: 2 Gn, 5...300 Hz, Vibration control relay closed: 4 Gn, 5...300 Hz
• Height: 77mm
• Width: 45mm
• Depth: 93mm
• Net weight: 0.58kg
• Environment standards: EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1
• Product certifications: CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
• IP degree of protection: IP2x front conforming to VDE 0106
• Protective treatment: TH conforming to IEC 60068
• Ambient air temperature for operation: -40…60 °C, 60…70 °C with underload
• Ambient air temperature for storage: -60…80 °C
• Operating height: 0...3000 m

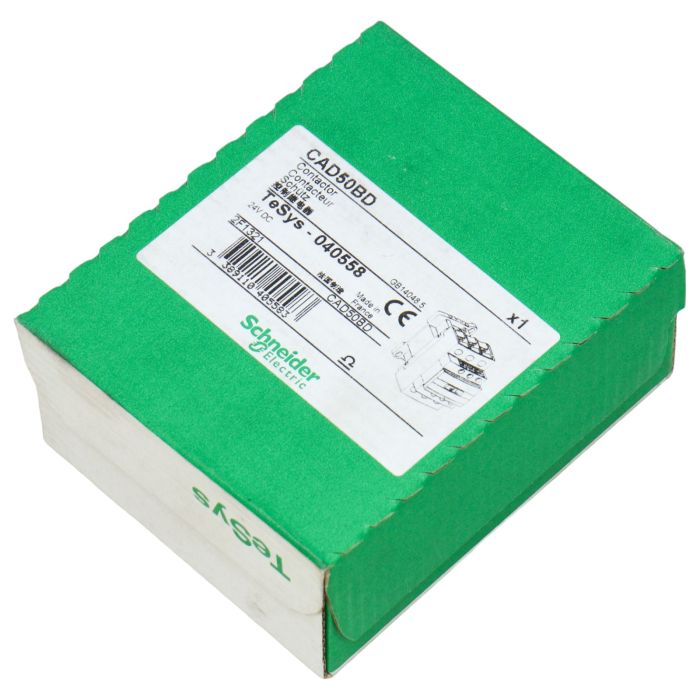

Schneider Electric CAD50BD 040558 is a high-quality industrial automation product that can be used in various industrial applications. This item is perfect for controlling electrical circuits and can be purchased at PLC2Day. Upgrade your automation system with Schneider Electric products for reliable performance and efficiency.
