Schneider Electric TeSys D Control Relay

Description

The CAD32MD is a high-performance control relay from the Schneider Electric TeSys D series, engineered for demanding industrial automation and control systems. It provides reliable switching for control circuits, ensuring high machine availability. This model operates on a 220V DC coil and offers a flexible contact arrangement.

Specifications

• Manufacturer: Schneider Electric
• Product Line: TeSys D
• Model: CAD32MD
• Coil Voltage: 220V DC
• Contact Configuration: 3 Normally Open (NO) + 2 Normally Closed (NC)
• Rated Operational Current (Ie): 10 A at <= 690 V AC-15
• Mounting Type: DIN Rail or Plate

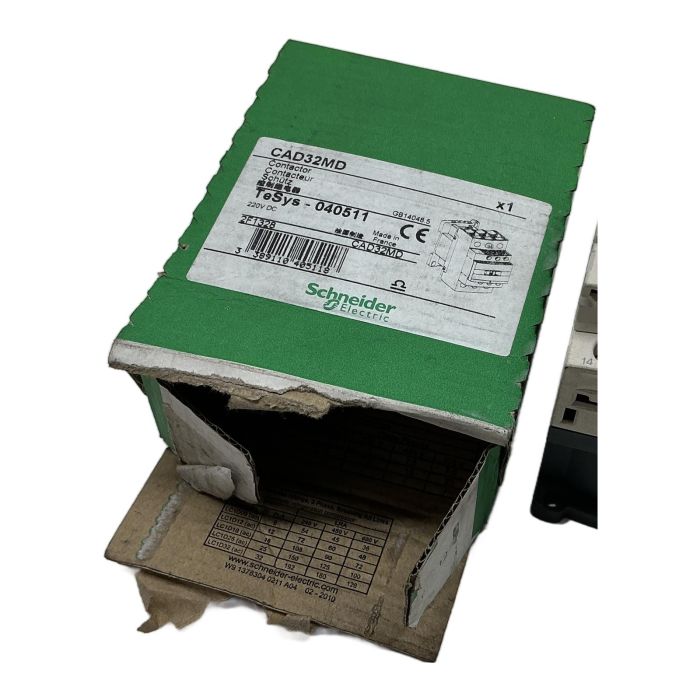

Label Info

• Type: CAD32MD
• Coil: 220V DC
• EAN: 3389110405118

Application

Ideal for use in control panels for industrial machinery, HVAC systems, and any application requiring reliable electrical switching of control signals. Its robust design is suitable for use in safety applications as well.

Country of Origin

Made in France.

CO2 Impact

Opting for this pre-owned component saves an estimated 22.0 kg of CO2 compared to a new purchase. This is a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. The unit is new old stock (NOS) and comes in its original, opened box. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the difference between the 'MD' suffix and other suffixes like 'BD' or 'FD' in the CAD32 series?

The final two letters in the model number denote the coil voltage and type. 'MD' specifically indicates a 220V DC standard coil. Other suffixes like 'BD' would represent a 24V DC coil, while 'F7' would indicate a 110V AC coil. Always verify the suffix to ensure compatibility with your control voltage.

Yes, the TeSys D series is modular. You can add front-mounted (LADN) or side-mounted (LAD8N) auxiliary contact blocks to expand the number of NO and NC contacts as needed for your application.

The contacts are rated for 10 A according to the AC-15 utilization category at voltages up to 690V AC. This makes it suitable for switching control circuit loads like other relay coils, pilot lights, and small solenoids. For DC loads (DC-13), the rating is lower and depends on the voltage.
