• TeSys D - Auxiliary contactor 3M+2V
• Control voltage: 220V DC
• Specifications:
  • Head: Screw
  • Range: <=690V
  • TeSys: TeSys Deca
  • Product name: TeSys CAD
  • Product or component type: Control relay
  • Device short name: CAD
  • Application contactor: Control circuit
  • Utilization category: AC-14, AC-15, DC-13
  • Composition of pole contact: 3 normally open + 2 normally closed
  • Your assigned operating voltage: <= 690 V AC 25...400 Hz
  • Type of control circuit: DC standard
  • Voltage control circuit: 220VDC
  • Uimp assigned shock wave voltage: 6 kV conforming to IEC 60947
  • Ith conventional thermal flow in free air: 10 A (at 60 °C)
  • Irms nominal making capacity: 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1
  • Icw short duration current: 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms
  • Associated fuse rating: 10 A gG conforming to IEC 60947-5-1
  • Ui rated insulation voltage: 600 V UL certified, 600 V CSA certified, 690 V conforming to IEC 60947-5-1
  • Mounting support: Rail, Plate
  • Connections - terminals:
    • Screw clamp connections 1 cable(s) 1…4 mm² flexible without cable end
    • Screw clamp connections 2 cable(s) 1…4 mm² flexible without cable end
    • Screw clamp connections 1 cable(s) 1…4 mm² flexible with
    • Screw clamp connections 2 cable(s) 1…2.5 mm² flexible with
    • Screw clamp connections 1 cable(s) 1…4 mm² solid without cable end
    • Screw clamp connections 2 cable(s) 1…4 mm² solid without cable end
  • Tightening torque: 1.2 Nm - on screw terminal connections - with screwdriver Philips No 2, flat Ø 6 mm, pozidriv No 2
  • Control circuit voltage limits: 0.1...0.25 Uc -40...70 °C dropout DC, 0.7...1.25 Uc -40...60 °C operational DC, 1...1.25 Uc 60...70 °C operational DC
  • Operating time: 53...72 ms coil activation and normally open opening, 16...24 ms coil deactivation and normally open opening, 47...63 ms coil activation and normally closed opening, 15...25 ms coil de-energization and closing NC
  • Mechanical durability: 30 Mcycles
  • Maximum operating speed: 180 cyc/min
  • Time constant: 28ms
  • Inrush current in W: 5.4 W (20 °C)
  • Hold-in power consumption in W: 5.4 W at 20 °C
  • Minimum switching voltage: 17 Q
  • Minimum switching current: 5mA
  • Non-overlap time: 1.5 ms with energization between NC and NO contact, 1.5 ms with de-energization between NC and NO contact
  • Insulation resistance: > 10 MOhm
  • Mechanical strength: Shocks control relay open: 10 Gn for 11 ms, closed: 15 Gn for 11 ms, Vibrations control relay open: 2 Gn, 5...300 Hz, closed: 4 Gn, 5...300 Hz
  • Height: 77mm
  • Width: 45mm
  • Depth: 93mm
  • Net weight: 0.58kg
  • Environment standards: EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1
  • Product certifications: CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
  • IP degree of protection: IP2x front conforming to VDE 0106
  • Protective treatment: TH conforming to IEC 60068
  • Ambient air temperature for operation: -40…60 °C, 60…70 °C with underload
  • Ambient air temperature for storage: -60…80 °C
  • Operating height: 0...3000 m

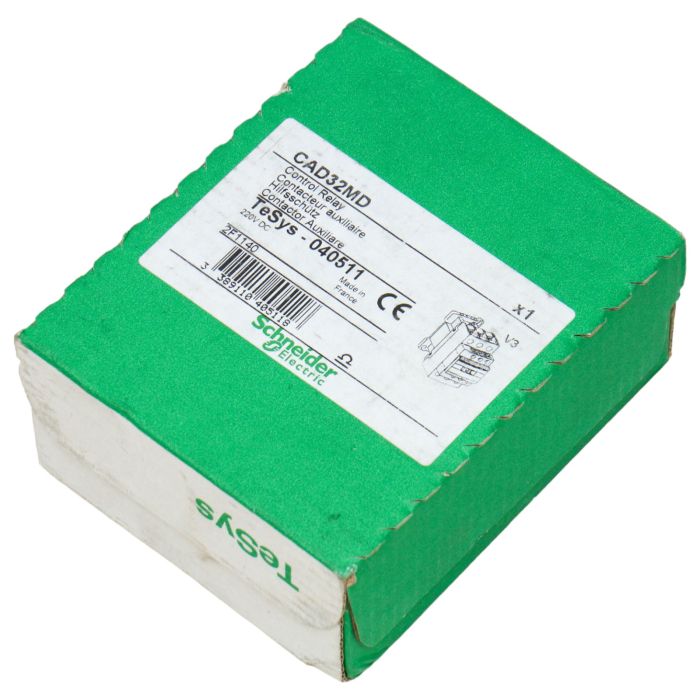

CAD32MD 040511 Schneider Electric is a high-quality industrial automation component that is commonly used in various industrial applications. This item can be purchased at PLC2Day, a trusted online retailer for automation products.
