Schneider Electric TeSys D Control Relay - CAD32BL

Description

The Schneider Electric CAD32BL is a control relay from the renowned TeSys D series, engineered for high-reliability switching in control and automation systems. It operates with a 24V DC low-consumption coil, making it ideal for direct control by PLC outputs. With its robust construction and proven performance, this relay is a staple component for industrial machinery, panel building, and process control applications.

Specifications

• Manufacturer: Schneider Electric
• Product Line: TeSys D
• Model: CAD32BL
• Part Number: 040708
• Component Type: Control Relay
• Coil Voltage: 24V DC (Low Consumption)
• Coil Power: 2.4W
• Contact Configuration: 3 Normally Open (NO), 2 Normally Closed (NC)
• Conventional Free Air Thermal Current [Ith]: 10 A at <= 60 deg C
• Rated Insulation Voltage [Ui]: 690 V conforming to IEC 60947-5-1

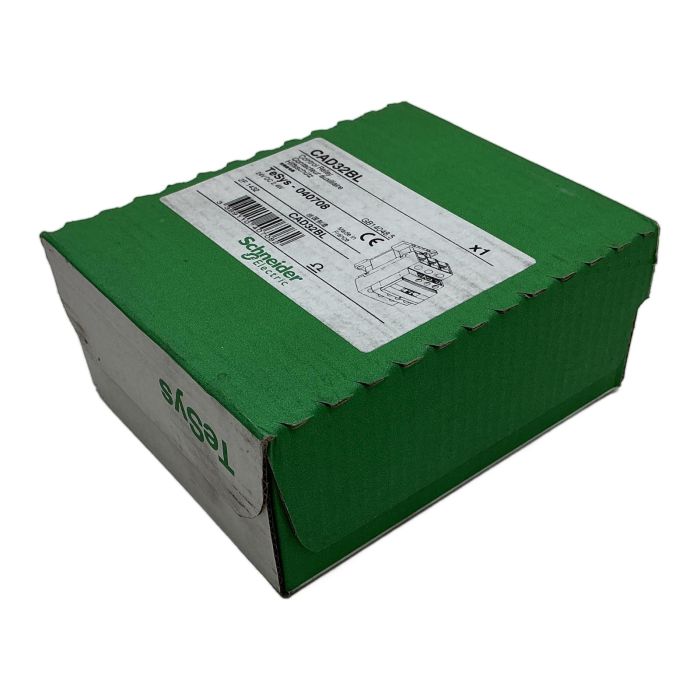

Label Info

• Model: CAD32BL
• Order Code: TeSys - 040708
• EAN: 3389110407082

Application

This control relay is designed for use in various industrial applications including motor control circuits, signaling, and interfacing with programmable logic controllers (PLCs). Its low-consumption coil makes it particularly suitable for modern, energy-efficient control panels.

Country of Origin

Made in France.

CO2 Impact

Opting for a reconditioned CAD32BL relay helps avoid the CO2 emissions associated with new production. This unit represents a saving of approximately 19.2 kg of CO2, which is comparable to the emissions from driving a standard car for 96 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'BL' suffix indicates that the relay is equipped with a low-consumption 24V DC coil, which is ideal for direct connection to PLC outputs and reduces overall energy usage in the control panel.

The CAD32BL features a 5-pole configuration with 3 Normally Open (NO) contacts and 2 Normally Closed (NC) contacts, providing flexibility for various control logic scenarios.

Yes, it is fully compatible with the wide range of TeSys D accessories, such as additional auxiliary contact blocks, pneumatic timers, and mechanical latches, allowing for enhanced functionality.
