TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 24 V DC low consumption coil: Specifications, Main, Range, TeSys, TeSys Deca, Product name, TeSys CAD, Product or Component Type, Control relay, Device short name, CAD, contactor application, Control circuit, Complementary, utilisation category, AC-15, DC-13, AC-14, Pole contact composition, 3 NO + 2 NC, [Ue] rated operational voltage, <= 690 V AC 25...400 Hz, Control circuit type, DC low consumption, [Uc] control circuit voltage, 24 V DC, [Uimp] rated impulse withstand voltage, 6 kV IEC 60947, [Ith] conventional free air thermal current, 10 A (at 140 °F (60 °C)), Irms rated making capacity, 140 A AC IEC 60947-5-1, 250 A DC IEC 60947-5-1, [Icw] rated short-time withstand current, 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms, Associated fuse rating, 10 A gG conforming to IEC 60947-5-1, [Ui] rated insulation voltage, 600 V UL, 600 V CSA, 690 V IEC 60947-5-1, Mounting Support, Plate, Rail, Connections - terminals, Screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end, screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end, screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end, screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end, screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)solid without cable end, screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)solid without cable end, Tightening torque, 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2, 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm, 10.62 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2, Control circuit voltage limits, 0.1...0.25 Uc -40…158 °F (-40…70 °C) drop-out DC, 0.7...1.25 Uc -40…140 °F (-40…60 °C) operational DC, 1...1.25 Uc 140…158 °F (60…70 °C) operational DC, Operating time, 65...88 ms coil energisation and NO closing, 14...25 ms coil de-energisation and NO opening, 57...77 ms coil energisation and NC opening, 28...42 ms coil de-energisation and NC closing, Mechanical durability, 30 Mcycles, Maximum operating rate, 180 cyc/mn, Time constant, 40 ms, Inrush power in W, 2.4 W 68 °F (20 °C)), Hold-in power consumption in W, 2.4 W 68 °F (20 °C), Minimum switching voltage, 17 V, Minimum switching current, 5 mA, Non-overlap time, 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact, Insulation resistance, > 10 MOhm, Mechanical robustness, Shocks control relay open10 Gn for 11 ms IEC 60068-2-27, Shocks control relay closed15 Gn for 11 ms IEC 60068-2-27, Vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6, Vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6, Height, 3.03 in (77 mm), Width, 1.77 in (45 mm), Depth, 3.66 in (93 mm), Net Weight, 1.28 lb(US) (0.58 kg), Environment, Standards, EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1, Product Certifications, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, IP degree of protection, IP2X VDE 0106, Protective treatment, TH IEC 60068, Ambient air temperature for operation, -40…140 °F (-40…60 °C), 140…158 °F (60…70 °C) with derating, Ambient Air Temperature for Storage, -76…176 °F (-60…80 °C), Operating altitude, 0...9842.52 ft (0...3000 m)

• Product name: TeSys CAD Control relay
• Range: TeSys Deca
• Product or Component Type: Control relay
• Device short name: CAD
• Contactor application: Control circuit
• Utilisation category: AC-15, DC-13, AC-14
• Pole contact composition: 3 NO + 2 NC
• [Ue] rated operational voltage: <= 690 V AC 25-400 Hz
• Control circuit type: DC low consumption
• [Uc] control circuit voltage: 24 V DC
• [Ui] rated insulation voltage: 600 V UL, 600 V CSA, 690 V IEC 60947-5-1
• Mounting Support: Plate, Rail
• Connections - terminals: Various options for screw clamp terminals
• Tightening torque: 10.62 lbf.in (1.2 N.m)
• Operating time: Various ranges for coil energisation and contact opening/closing
• Mechanical durability: 30 Mcycles
• Maximum operating rate: 180 cyc/mn
• Environment Standards: EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1
• IP degree of protection: IP2X VDE 0106
• Ambient air temperature for operation: -40-140°F (-40-60°C)

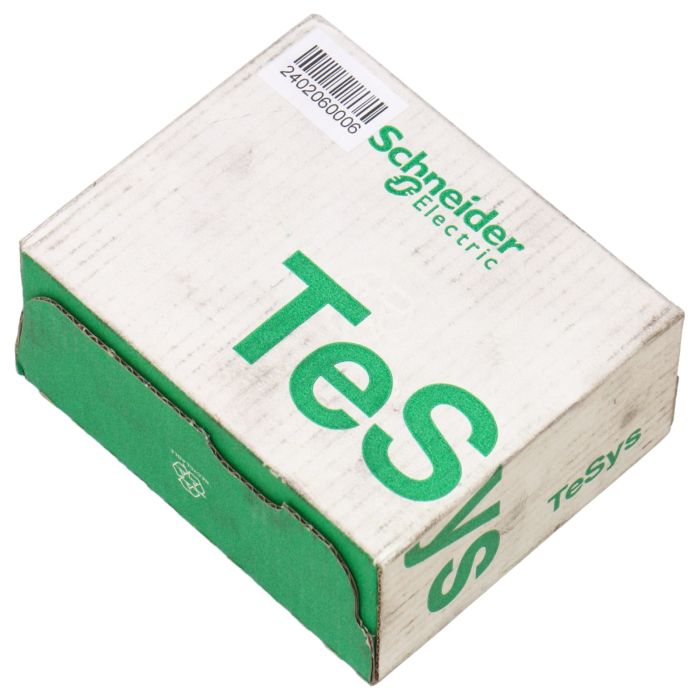

CAD32BL 040708 Schneider Electric is a versatile industrial control relay, perfect for use in a variety of applications. From manufacturing plants to commercial buildings, this reliable relay can be used to control motors, pumps, and other electrical equipment. Purchase this item at PLC2Day for all your industrial automation needs.
