Schneider Electric TeSys D Control Relay

Description

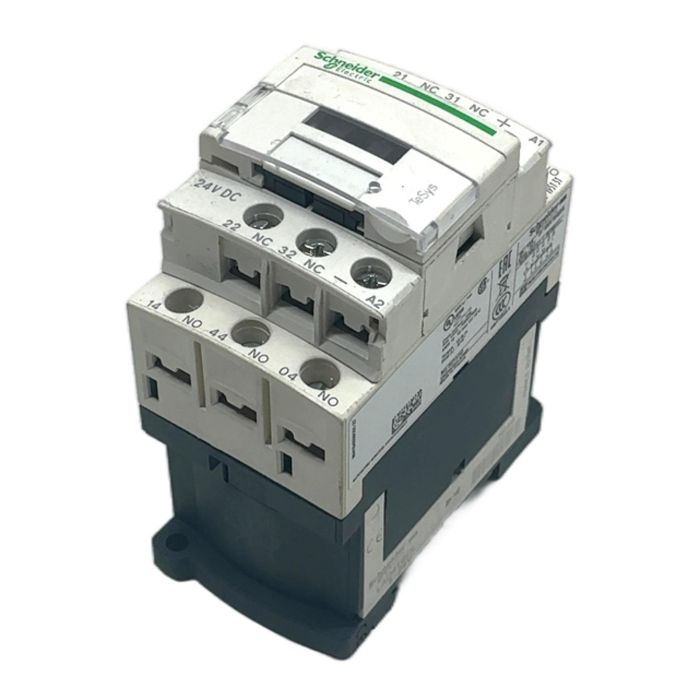

This is a robust TeSys D control relay, model CAD32BD, from Schneider Electric. It is designed for high-reliability control circuit applications. This unit operates with a 24V DC low consumption coil, making it suitable for direct connection to PLC outputs. While the top is marked CAD32, please note that it is physically configured with 2 Normally Open and 2 Normally Closed contacts. It also integrates features from the LAD4TBDL electronic timer module.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys D
• Model: CAD32BD
• Associated Module: LAD4TBDL
• Coil Voltage: 24V DC (Low Consumption)
• Contact Configuration: 2NO + 2NC
• Rated Voltage: up to 690V AC

Label Info

• Part Number: CAD32BD with LAD4TBDL base
• Date Code: 2G1948 (Week 48, 2019)

Application

Ideal for use in industrial control panels for logic switching, interlocking, and signaling in automation systems, motor control centers, and processing machinery.

Country of Origin

Made in France.

CO2 Impact

Opting for this reused control relay saves approximately 10.0 kg of CO2 compared to a new purchase, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The unit is marked as a CAD32, which typically has a 3NO+2NC configuration in the TeSys D series. However, the terminals on this specific device are for a 2NO+2NC setup, which corresponds to a CAD22 model. This could be a special version or a custom assembly. Buyers should verify the contact arrangement meets their application needs.

The LAD4TBDL is an electronic timer block designed as an accessory for TeSys D contactors and relays. In this assembly, it appears to be integrated into the base/coil part of the unit, providing timing functions for the relay's operation. It is not a separate, standalone timer in this configuration.

The low consumption coil requires significantly less power to actuate and hold the relay, making it ideal for direct control from PLC outputs without needing an interposing relay. This reduces power consumption, heat generation in the control panel, and allows for a smaller power supply unit.
