Schneider Electric TeSys D Control Relay

Description

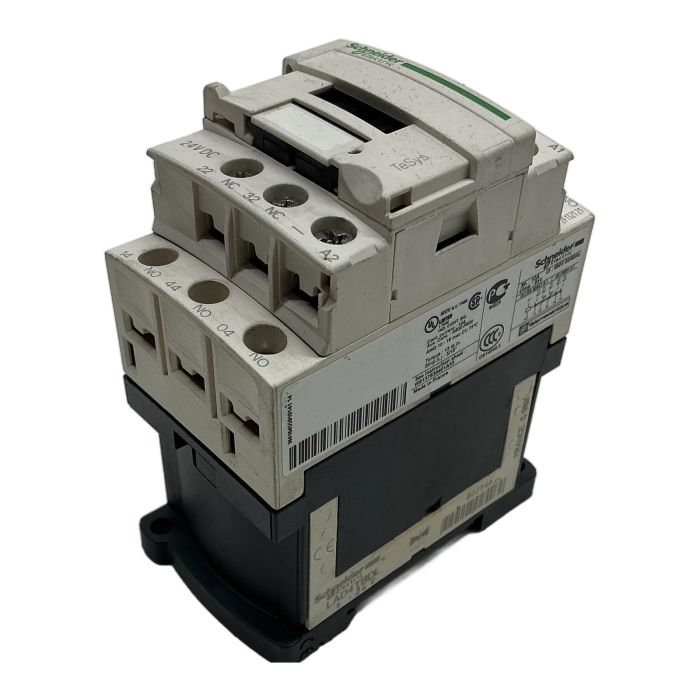

The CAD32BD is a high-performance control relay from Schneider Electric's renowned TeSys D series. It is designed for switching control circuits in industrial automation systems. This model features a 24V DC low-consumption coil and a 3 NO + 2 NC contact arrangement. This unit also includes an LAD4TBDL surge suppressor module, which protects the coil against voltage transients, increasing the product's lifespan and reliability.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys D
• Model: CAD32BD
• Coil Voltage: 24V DC
• Contact Configuration: 3 Normally Open (NO), 2 Normally Closed (NC)
• Conventional Free Air Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 690 V
• Included Accessory: LAD4TBDL Surge Suppressor Module (5-24V)

Label Info

• Standards: IEC/EN 60947-5-1, UL 508, CSA C22.2 No 14

Application

Ideal for use in control panels for motors, lighting, heating, and general automation tasks where reliable signal switching is critical.

Country of Origin

Made in France.

CO2 Impact

Choosing this pre-owned component saves approximately 16.0 kg of CO2 compared to a new one, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The LAD4TBDL is a bidirectional diode surge suppressor module. It is fitted across the coil terminals (A1/A2) to clip voltage spikes that occur when the DC coil is de-energized, protecting both the contactor and other sensitive electronics in the control circuit.

The 'BD' suffix in Schneider Electric's nomenclature for TeSys relays indicates a low-consumption 24V DC coil, which is compatible with PLC outputs and requires less power to operate compared to standard DC coils.

Yes, the TeSys D range is highly modular. This CAD32BD control relay is compatible with a wide range of accessories, including additional front or side-mounted auxiliary contact blocks, mechanical interlocks, and pneumatic timer modules.
