Schneider Electric TeSys D Control Relay

Description

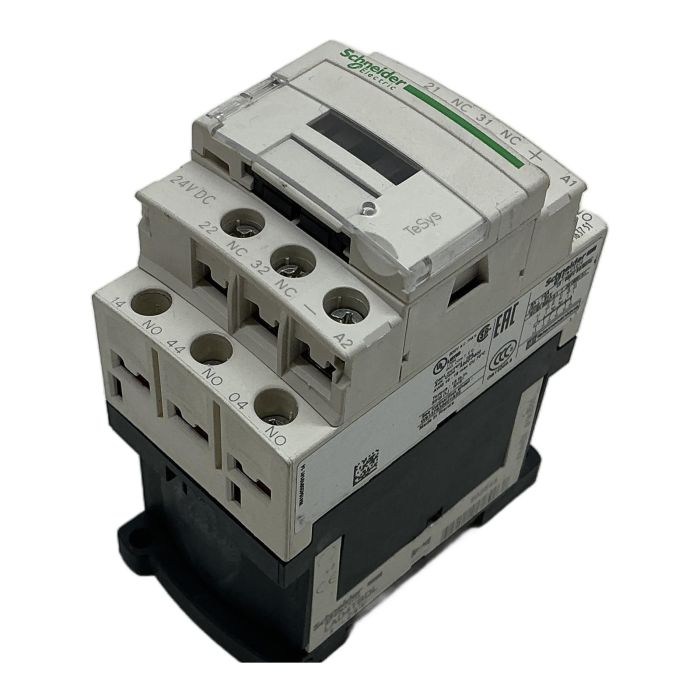

The CAD32BD is a high-performance control relay from the Schneider Electric TeSys D range. It is designed for demanding industrial control applications, providing reliable switching for control circuits. This unit is equipped with a 24V DC low consumption coil, making it suitable for direct control from PLC outputs. This specific assembly includes a LAD4TBDL off-delay timer module for added functionality.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys D
• Model: CAD32BD
• Attached Module: LAD4TBDL (Off-Delay Timer 5-24V)
• Coil Voltage: 24V DC (Low Consumption)
• Contact Configuration: 3 NO + 2 NC (3 Normally Open, 2 Normally Closed)
• Conventional Free Air Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 690V
• Rated Impulse Withstand Voltage (Uimp): 6kV

Label Info

• Standards: IEC/EN 60947-5-1, UL, CSA, CCC
• Model: CAD32BD
• Module: LAD4TBDL
• Coil: 24V DC

Application

Ideal for use in automation panels, motor control centers, and general industrial machinery for implementing control logic, signaling, and interfacing between control devices.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned item, you are helping to avoid the emission of approximately 14 kg of CO2 associated with the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The LAD4TBDL is a pneumatic off-delay timer block. When the coil of the main CAD32BD relay is de-energized, this module keeps its contacts in their initial state for a set period before they switch back, providing timed control logic.

A low consumption coil requires significantly less power to operate. This allows it to be driven directly by a PLC's digital output without needing an interposing relay, simplifying wiring, reducing costs, and lowering panel heat.

No, the CAD32BD is a control relay (auxiliary contactor) designed for switching control circuits and small loads up to 10A (AC-1/thermal current). For switching motor loads, you should use a power contactor from the TeSys D series, such as an LC1D model, which is specifically rated for motor switching (AC-3 utilization category).
