CAD32BD + LAD4TBDL Control Relay and Bi-Directional Limiting Diode

Product Description

Control relay CAD32BD and bi-directional limiting diode LAD4TBDL designed for electrical power transmission applications.

Product Specifications

Description: CAD32BD Control relay, TeSys Deca, 3NO+2NC, <=690V, 24V DC standard coil, screw clamp terminals, 3389110404166, + LAD4TBDL contactor bi-directional limiting diode. EAN: 3389118025462

Product Label Info

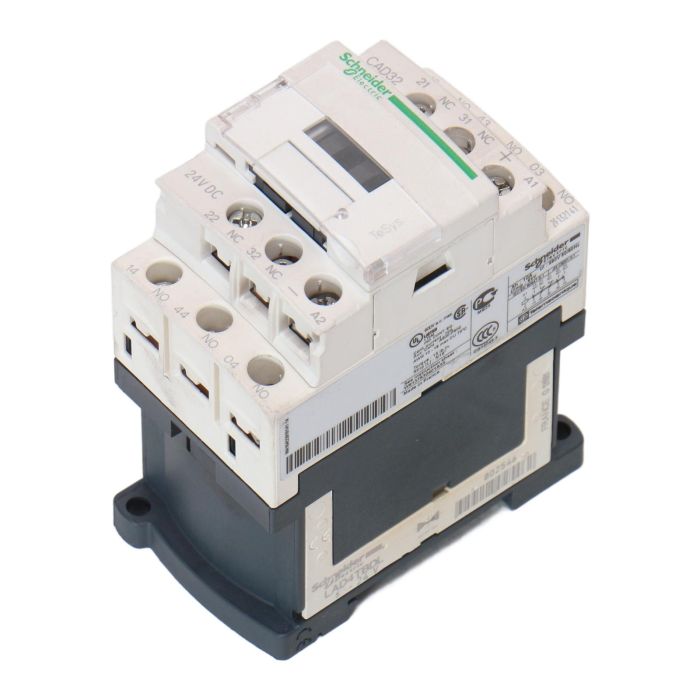

Model Code / Product Markings: CAD32BD + LAD4TBDL

1 CAD32BD, CE, W416455910141 14, O, 600V a.c. max., UL LISTED, 170M, IND. CONT. EQ., Cont. current: 10A, SP, Aux. Cont.: A600-P600, AWG 10-18 max CU 75°C, Torque: 15 lb.in., Strip (L): 5/16', See instruction sheet: W9137830401A55, Made in France, PG+, ME25, S, GB14048.5, Electric, Schneider

2 LAD4TBDL, 5 -24 V, 802546, Schneider, th: 10A, Electric, U₁: 690V 50/60Hz, Uimp: 6kV, IEC/EN 60947-5-1, A1, JS C8201-5-1, 31, 13.21, 43 03, NO NC NC NO NO, A2 14 22 32 44 04, Telemecanique, FRANCE G 131631

Application

Designed for electrical power transmission applications.

Country of Origin

This product is manufactured in France.

Method of Application

Refer to the official datasheet or product page for installation and integration instructions.

Safety Instructions

Handle with care according to manufacturer guidelines.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Schneider Electric
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the CAD32BD + LAD4TBDL used for?

This part is typically used in electrical power transmission applications. It handles control relay functions and bi-directional limiting diode operations.

What are the key advantages of CAD32BD + LAD4TBDL?

These components offer reliable control and protection for electrical systems.

Is CAD32BD + LAD4TBDL compatible with my system?

If you're using Schneider Electric control systems, especially TeSys Deca series, then these models will likely be compatible. Contact us to verify.

Alternatives to CAD32BD + LAD4TBDL

For similar parts, consider exploring other Schneider Electric products in the TeSys range.

Can I sell my surplus stock to PLC2DAY?

Yes, PLC2DAY accepts surplus stock for resale. Contact us for more information.
