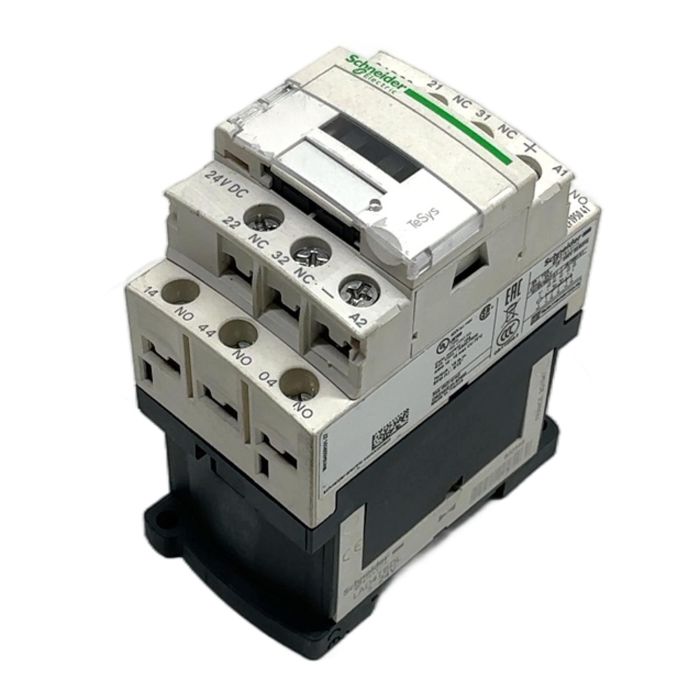

Schneider Electric CAD32BD TeSys D Control Relay

Description

The Schneider Electric CAD32BD is a high-performance control relay from the renowned TeSys D series. It is designed for switching control circuits in industrial automation and control systems. Featuring a 24V DC low-consumption coil, it is ideal for direct interfacing with PLC outputs. This relay provides a reliable switching solution with a configuration of 3 normally open (NO) and 2 normally closed (NC) contacts.

Specifications

• Type: Control Relay
• Brand: Schneider Electric
• Model: CAD32BD
• Coil Voltage: 24V DC (Low Consumption)
• Contact Configuration: 3 NO + 2 NC
• Conventional Free Air Thermal Current (Ith): 10 A at up to 60 deg C
• Rated Insulation Voltage (Ui): 690V conforming to IEC 60947-5-1

Label Info

• Part Number: CAD32BD
• Coil Module: LAD4TBDL (5-24V)
• Standards: IEC/EN 60947-5-1, UL, CSA

Application

This control relay is suitable for a wide range of applications, including motor control circuits, signaling, and interlocking functions within industrial machinery, HVAC systems, and control panels.

Country of Origin

Made in France.

CO2 Impact

Opting for this pre-owned component avoids the production of a new one, saving an estimated 10 kg of CO2. This is a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What does the 'BD' suffix in CAD32BD signify?

The 'BD' suffix in the Schneider Electric TeSys D series indicates that the relay is equipped with a 24V DC low-consumption coil. This type of coil is suitable for direct control by PLC outputs and has a wide operating voltage range.

The CAD32BD has a conventional free air thermal current (Ith) of 10 Amperes for ambient temperatures up to 60 deg C. This is the maximum current the contacts can carry continuously without overheating.

Yes, the TeSys D control relays are designed to be modular. You can add front-mounted or side-mounted auxiliary contact blocks from the LADN and LADC series to expand the number of NO and NC contacts as needed for your application.
