Schneider Electric TeSys D Control Relay

Description

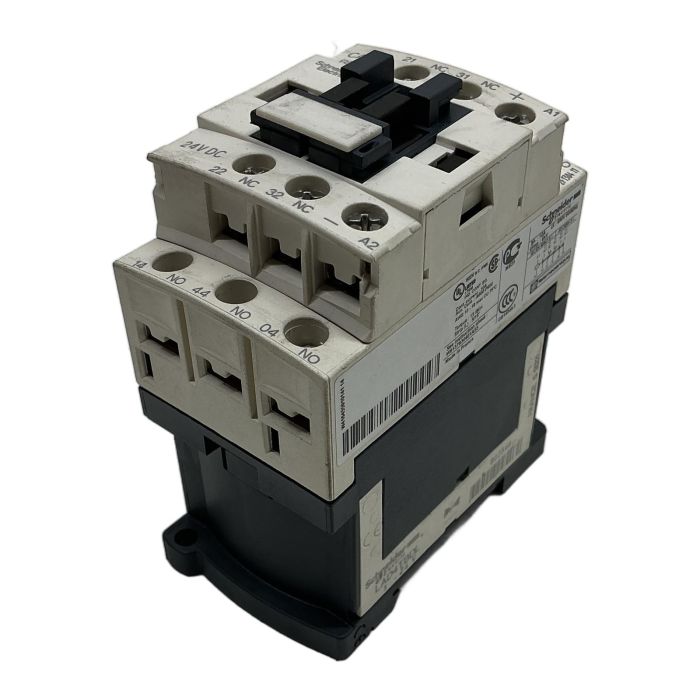

The Schneider Electric CAD32BD is a high-performance control relay from the TeSys D series, designed for demanding industrial applications. It operates with a 24V DC coil and provides a 3 NO + 2 NC contact configuration, making it versatile for various interlocking and signaling tasks in automation systems. Its robust construction ensures long-term reliability and electrical durability.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys D
• Model: CAD32BD
• Coil Voltage: 24V DC
• Contact Configuration: 3 Normally Open (NO), 2 Normally Closed (NC)
• Conventional Free Air Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 690 V
• Mounting: DIN Rail or Screw Mount

Label Info

• Brand: Schneider Electric / Telemecanique
• Model: CAD32 BD
• Standards: IEC/EN 60947-5-1, UL Listed, CCC

Application

This control relay is ideal for use in control panels for motors, conveyors, lighting systems, and other machinery where reliable logic switching is required. It is commonly used in safety circuits, feedback loops, and as an interface between PLCs and higher power contactors.

Country of Origin

This product is proudly made in France.

CO2 Impact

Opting for a reconditioned CAD32BD relay saves approximately 20 kg of CO2 compared to manufacturing a new one. This is equivalent to charging a smartphone over 2400 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The TeSys Deca CAD32B7 is the direct successor, offering similar form, fit, and function but often with improved environmental compliance (e.g., RoHS) and potentially updated material composition. For most applications, they are interchangeable, but always check the datasheet for specific performance differences.

Yes, the CAD32BD is fully compatible with the wide range of TeSys D accessories, including additional auxiliary contact blocks (front and side mount), pneumatic and electronic timer modules, and mechanical interlocks.

The terminals accept AWG 18 to AWG 10 copper wire (CU 75deg.C). The recommended tightening torque is 15 lb.in (approximately 1.7 Nm) to ensure a secure and reliable connection without damaging the terminals.
