TeSys D control relay - 3 NO + 2 NC - <= 690 V - 24 V DC standard coil: Specifications, Main, Range, TeSys, TeSys Deca, Product name, TeSys CAD, Product or component type, Control relay, Device short name, CAD, contactor application, Control circuit, Complementary, utilisation category, DC-13, AC-15, AC-14, Pole contact composition, 3 NO + 2 NC, [Ue] rated operational voltage, <= 690 V AC 25...400 Hz, Control circuit type, DC standard, [Uc] control circuit voltage, 24 V DC, [Uimp] rated impulse withstand voltage, 6 kV conforming to IEC 60947, [Ith] conventional free air thermal current, 10 A (at 60 °C), Irms rated making capacity, 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1, [Icw] rated short-time withstand current, 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms, Associated fuse rating, 10 A gG conforming to IEC 60947-5-1, [Ui] rated insulation voltage, 600 V UL certified, 600 V CSA certified, 690 V conforming to IEC 60947-5-1, mounting support, Rail, Plate, Connections - terminals, Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end, Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end, Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end, Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end, Screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end, Screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end, Tightening torque, 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2, 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, Control circuit voltage limits, 0.1...0.25 Uc (-40…70 °C):drop-out DC, 0.7...1.25 Uc (-40…60 °C):operational DC, 1...1.25 Uc (60…70 °C):operational DC, Operating time, 53...72 ms coil energisation and NO closing, 16...24 ms coil de-energisation and NO opening, 47...63 ms coil energisation and NC opening, 15...25 ms coil de-energisation and NC closing, Mechanical durability, 30 Mcycles, Maximum operating rate, 180 cyc/mn, Time constant, 28 ms, Inrush power in W, 5.4 W (at 20 °C), Hold-in power consumption in W, 5.4 W at 20 °C, Minimum switching voltage, 17 V, Minimum switching current, 5 mA, Non-overlap time, 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact, Insulation resistance, > 10 MOhm, Mechanical robustness, Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27, Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27, Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, height, 77 mm, Width, 45 mm, Depth, 93 mm, Net weight, 0.58 kg, Environment, Standards, EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1, product certifications, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, IP degree of protection, IP2X front face conforming to VDE 0106, Protective treatment, TH conforming to IEC 60068, Ambient air temperature for operation, -40…60 °C, 60…70 °C with derating, Ambient air temperature for storage, -60…80 °C, Operating altitude, 0...3000 m

• Specifications:
  • Main range: TeSys
  • Range: TeSys Deca
  • Product name: TeSys CAD
  • Product or component type: Control relay
  • Device short name: CAD
  • Contact application: Contactor
• TeSys CAD:
  • Control circuit: DC-13, AC-15, AC-14
  • Pole contact composition: 3 NO + 2 NC
  • Rated operational voltage: <= 690 V AC 25...400 Hz
  • Control circuit type: DC standard
  • Control circuit voltage: 24 V DC
• Complementary:
  • Utilisation category: DC-13, AC-15, AC-14
  • Rated impulse withstand voltage: 6 kV
  • Conventional free air thermal current: 10 A
  • Rated making capacity: 140 A AC, 250 A DC
  • Rated short-time withstand current: 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms
• Mounting support:
  • Rail, Plate
• Connections - terminals:
  • Screw clamp terminals 1 cable(s) 1…4 mm² flexible without cable end
  • Screw clamp terminals 2 cable(s) 1…4 mm² flexible without cable end
• Tightening torque: 1.2 N.m
• Operating time: 53-72 ms coil energisation and NO closing, 16-24 ms coil de-energisation and NO opening
• Environment:
  • Standards: EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1
  • IP degree of protection: IP2X front face
  • Ambient air temperature for operation: -40…60 °C, 60…70 °C with derating

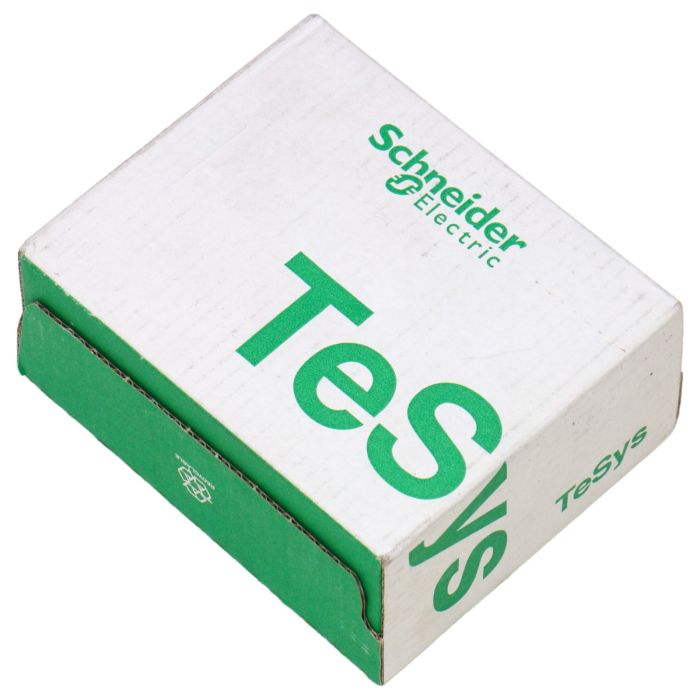

CAD32BD 040416 Schneider Electric is a versatile industrial control relay suitable for various industrial applications. It can be bought at PLC2Day for efficient control and automation of processes in manufacturing, energy, and infrastructure industries.
