TeSys D - Auxiliary contactor 3M+2V - <=690V - Control voltage: 24V DC - Screw: Specifications, Head, range, TeSys, TeSys Deca, product name, TeSys CAD, product or component type, Control relay, device short name, CAD, application contactor, Control circuit, Complementary, utilization category, DC-13, AC-15, AC-14, composition of pole contact, 3 normally open + 2 normally closed, Your assigned operating voltage, <= 690 V AC 25...400 Hz, type of control circuit, DC standard, voltage control circuit, 24VDC, Uimp assigned shock wave voltage, 6 kV conforming to IEC 60947, Ith conventional thermal flow in free air, 10 A (at 60 °C), Irms nominal making capacity, 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1, Icw short duration current, 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms, associated fuse rating, 10 A gG conforming to IEC 60947-5-1, Ui rated insulation voltage, 600 V UL certified, 600 V CSA certified, 690 V conforming to IEC 60947-5-1, mounting support, Rail, Plate, connections - terminals, Screw clamp connections 1 cable(s) 1…4 mm² flexible without cable end, Screw clamp connections 2 cable(s) 1…4 mm² flexible without cable end, Screw clamp connections 1 cable(s) 1…4 mm² flexible with, Screw clamp connections 2 cable(s) 1…2.5 mm² flexible with, Screw clamp connections 1 cable(s) 1…4 mm² solid without cable end, Screw clamp connections 2 cable(s) 1…4 mm² solid without cable end, tightening torque, 1.2 Nm - on screw terminal connections - with screwdriver Philips No 2, 1.2 Nm - on screw terminal connections - with screwdriver flat Ø 6 mm, 1.2 Nm - on screw terminal connections - with screwdriver pozidriv No 2, control circuit voltage limits, 0.1...0.25 Uc -40...70 °C dropout DC, 0.7...1.25 Uc -40...60 °C operational DC, 1...1.25 Uc 60...70 °C operational DC, operating time, 53...72 ms coil activation and normally open opening, 16...24 ms coil deactivation and normally open opening, 47...63 ms coil activation and normally closed opening, 15...25 ms coil de-energization and closing NC, mechanical durability, 30 Mcycles, maximum operating speed, 180 cyc/min, time constant, 28ms, inrush current in W, 5.4 W 20 °C), hold-in power consumption in W, 5.4 W at 20 °C, minimum switching voltage, 17 Q, minimum switching current, 5mA, non-overlap time, 1.5 ms with energization between NC and NO contact, 1.5 ms with de-energization between NC and NO contact, insulation resistance, > 10 MOhm, mechanical strength, Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27, Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27, Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, Vibration control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6, height, 77mm, width, 45mm, depth, 93mm, net weight, 0.58kg, Environment, standards, EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1, product certifications, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, IP degree of protection, IP2x front conforming to VDE 0106, protective treatment, TH conforming to IEC 60068, ambient air temperature for operation, -40…60 °C, 60…70 °C with underload, ambient air temperature for storage, -60…80 °C, operating height, 0...3000 m

• Product Name: TeSys CAD32BD
• Product Type: Control Relay
• Device Short Name: CAD
• Control Circuit Voltage: 24V DC
• Utilization Category: DC-13, AC-15, AC-14
• Composition of Pole Contact: 3 normally open + 2 normally closed
• Operating Voltage: <= 690 V AC 25...400 Hz
• Type of Control Circuit: DC Standard
• Conventional Thermal Flow: 10 A (at 60 °C)
• Nominal Making Capacity: 140 A AC, 250 A DC
• Short Duration Current: 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms
• Associated Fuse Rating: 10 A gG
• Rated Insulation Voltage: 600 V UL certified, 600 V CSA certified, 690 V
• Mounting Support: Rail, Plate
• Connections/Terminals: Screw clamp connections for various cable sizes
• Tightening Torque: 1.2 Nm
• Operating Temperature: -40…60 °C
• Standards: EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1
• Product Certifications: CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
• IP Degree of Protection: IP2x front conforming to VDE 0106
• Ambient Air Temperature: -40…60 °C
• Operating Height: 0...3000 m

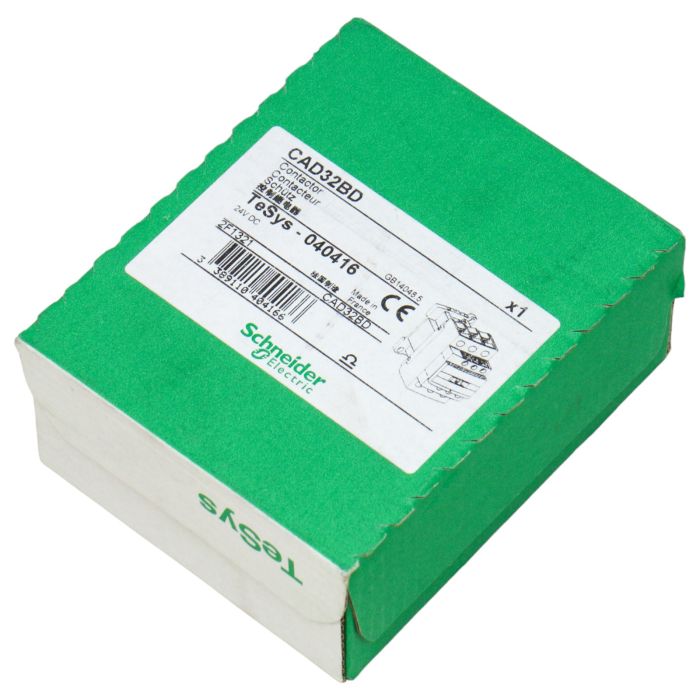

CAD32BD 040416 Schneider Electric is a versatile industrial relay used in various applications such as control panels, industrial machinery, and automation systems. This reliable item can be purchased at PLC2Day for all your industrial automation needs.
