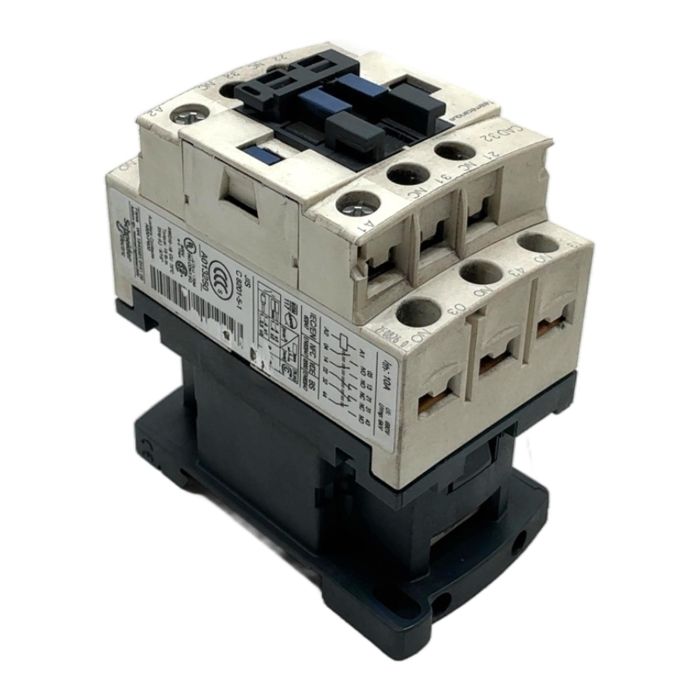

Schneider Electric TeSys D Control Relay

Description

The CAD32 from Schneider Electric is a high-reliability control relay part of the globally recognized TeSys D series. It is engineered for demanding industrial control applications, offering a standard contact configuration of 3 Normally Open (NO) and 2 Normally Closed (NC) contacts. This device is ideal for creating logic circuits, interlocking, and signaling within automation systems. Please note: the coil voltage for this specific unit needs to be identified by the full part number, which is not fully visible.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys D
• Model: CAD32
• Type: Control Relay
• Contact Configuration: 3 NO + 2 NC
• Conventional Free Air Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 690V
• Rated Impulse Withstand Voltage (Uimp): 6 kV

Label Info

• Standards: IEC/EN 60947, VDE 0660, BS, JIS C 8201-5-1
• Certifications: UL, CCC
• Auxiliary Contacts Rating (UL): A600-P600

Application

This control relay is designed for use in industrial control panels for machinery, HVAC systems, and process control. Its primary function is to switch control circuits and provide electrical interlocking between different components in an automated system.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned item, you are helping to avoid the emission of approximately 9.0 kg of CO2, which would be generated in the production of a new unit. This saving is comparable to the CO2 absorption of a mature tree over a year.

Availability

This is a used item in excellent working condition. Available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The coil voltage is not explicitly marked on the exterior of this unit. For the TeSys D series, the voltage is indicated by a code in the full part number (e.g., CAD32BD is 24VDC, CAD32P7 is 230VAC). It is essential to verify the required coil voltage for your application before installation.

Yes, the TeSys D series is modular. You can mount additional auxiliary contact blocks on the front or sides of the CAD32. For example, LADN or LADC blocks can be used to expand the number of NO and NC contacts.

The primary difference is their application. The CAD32 is a control relay with contacts rated for control-level currents (Ith 10A) and is used for logic, interlocking, and signaling. A power contactor like the LC1D series has main power poles designed to switch high-current motor or resistive loads, with much higher current ratings (e.g., 9A to 150A).
