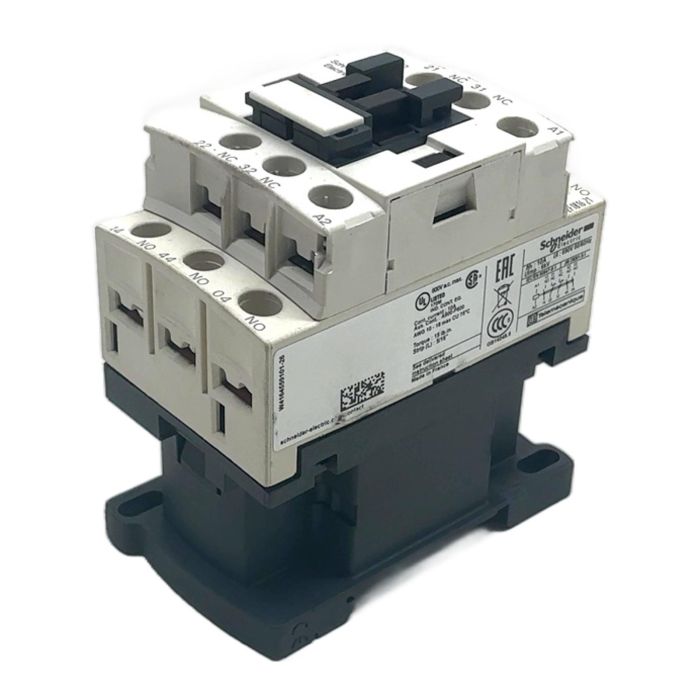

Schneider Electric TeSys D Control Relay

Description

The CAD32 from Schneider Electric is a high-reliability control relay from the renowned TeSys D series. It is engineered for switching control circuits in demanding industrial environments. This relay features a 3 NO + 2 NC contact configuration and a conventional free air thermal current (Ith) of 10 A, making it suitable for a wide range of logic control applications. Its robust design ensures a long mechanical and electrical life. Please note, the specific coil voltage is not specified for this unit and must be confirmed based on your application's requirements.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys D
• Model: CAD32
• Product Type: Control Relay
• Contact Configuration: 3 Normally Open (NO), 2 Normally Closed (NC)
• Conventional Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 690V
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Standards: IEC/EN 60947-5-1, GB14048.5

Label Info

• Brand: Schneider Electric / Telemecanique
• Model: CAD32
• Ith: 10A
• Ui: 690V 50/60Hz

Application

Ideal for use in industrial automation systems, control panels, and machine control for reliable signal switching and logic operations. It is commonly used in conjunction with PLCs, sensors, and other control devices.

Country of Origin

Made in France.

CO2 Impact

Opting for this pre-owned control relay prevents the emission of approximately 9.4 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the CO2 absorption of a mature tree over a year.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the main difference between a CAD32 control relay and a LC1D series contactor?
The CAD32 is a control relay designed for switching control circuits (auxiliary contacts), typically with a lower current rating (Ith 10A). An LC1D contactor is a power contactor designed for switching main power circuits like motors, with much higher current ratings. While they look similar, their application is different.

The full model number is not specified. How do I know the coil voltage of this CAD32 relay?
This listing is for the base model CAD32. The coil voltage, indicated by a code at the end of the part number (e.g., BD for 24V DC, P7 for 230V AC), is not specified on this unit's label. Please verify your required coil voltage before purchasing or contact us for available options.

Can I add auxiliary contact blocks to this CAD32 relay?
Yes, the TeSys D series, including the CAD32, is modular. You can add front-mount (LADN) or side-mount (LAD8N) auxiliary contact blocks to expand the number of NO or NC contacts as needed for your application.
