Schneider Electric TeSys D Control Relay

Description

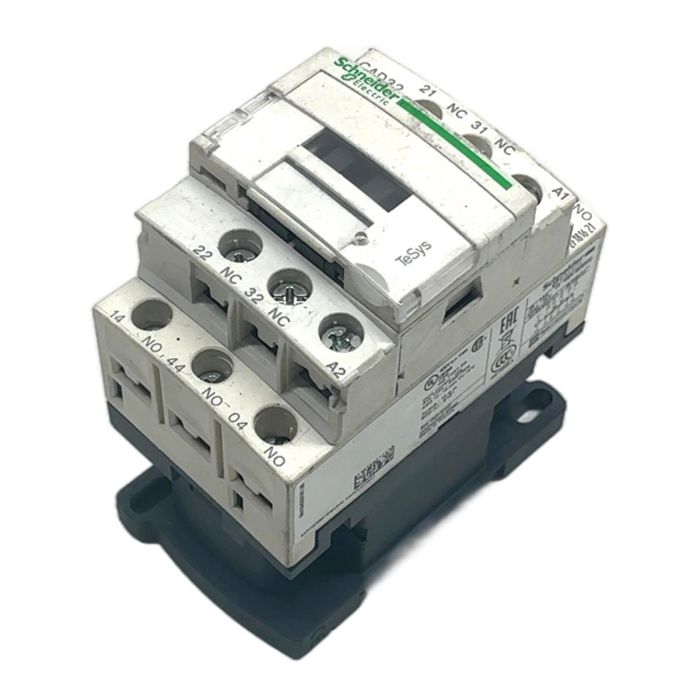

The Schneider Electric CAD32 is a high-performance control relay from the renowned TeSys D series. It is engineered for switching control circuits and is suitable for a wide range of industrial applications. This relay provides a reliable and long-lasting solution for automation and control panels, featuring a standard 3 NO + 2 NC contact arrangement.

Specifications

• Manufacturer: Schneider Electric
• Type: CAD32
• Series: TeSys D
• Contact Configuration: 3 Normally Open (NO), 2 Normally Closed (NC)
• Conventional Free Air Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 690 V AC 50/60 Hz
• Mounting: DIN Rail or Panel Mount

Label Info

• Brand: Schneider Electric / Telemecanique
• Model: CAD32
• Standards: UL, CSA, EAC, GB14048.5

Application

Ideal for use in industrial control systems, motor control centers, and automation panels for signalling and control logic. Its robust design makes it suitable for demanding environments requiring frequent switching operations.

Country of Origin

Made in France.

CO2 Impact

Choosing this reused control relay over a new one saves approximately 6.4 kg of CO2. This saving is comparable to the emissions from driving a car for 32 kilometers.

Availability

This item is a used, tested component in excellent working condition. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the coil voltage for this specific CAD32 relay?
Answer:
The coil voltage is not specified on the visible labels of this unit. The CAD32 series is available with various AC and DC coil voltages (e.g., 24V DC, 230V AC). It is crucial to verify the required coil voltage for your application and select a unit accordingly or test the coil resistance before installation.

Question?
Can I add auxiliary contact blocks to this CAD32 control relay?
Answer:
Yes, the TeSys D series, including the CAD32, is designed to be modular. You can add front-mounted or side-mounted auxiliary contact blocks (LADN series) to expand the number of NO or NC contacts as needed for your control logic.

Question?
What is the maximum switching frequency for the CAD32?
Answer:
The maximum operating rate for the Schneider Electric CAD32 control relay is 1800 cycles per hour at temperatures up to 60 deg C, making it suitable for applications with frequent switching operations.
