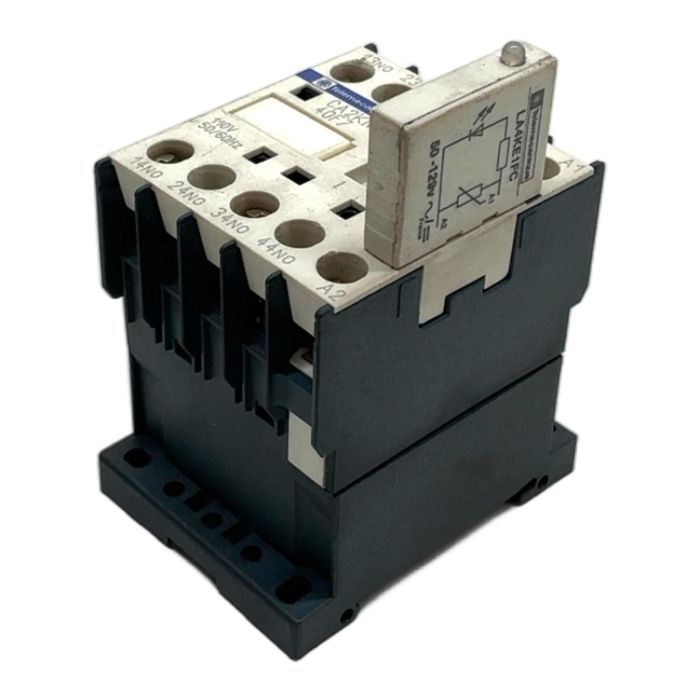

Schneider Electric TeSys K Control Relay CA2KN40F7

Description

This is a CA2KN40F7 control relay from Schneider Electric's TeSys K series. It is a compact and reliable component designed for switching control circuits in industrial applications. This 4-pole relay features 4 normally open (NO) contacts and is operated by a 110V AC 50/60Hz coil. Its robust design ensures a long mechanical and electrical life, making it a dependable choice for automation and control panels.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys K
• Model: CA2KN40F7
• Coil Voltage: 110V AC, 50/60Hz
• Contact Configuration: 4 NO (Normally Open)
• Conventional Free Air Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 690 V
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Mounting: DIN Rail or Screw Mount

Label Info

• Brand: Telemecanique / SQUARE D (Schneider Electric brands)
• Standards: IEC 947, NFC 63110, VDE 0660, BS 5424
• Certifications: UL, CSA, CE, NOM

Application

Ideal for use in industrial automation, HVAC systems, and machine control panels for tasks such as signal switching, interfacing with PLCs, and controlling small motors or other electrical loads within its rating.

Country of Origin

Made in France.

CO2 Impact

By reusing this component, you are preventing the emission of approximately 7.0 kg of CO2. This saving is comparable to the emissions from charging a smartphone over 800 times or driving a car for 35 kilometers. Choosing refurbished parts is a sustainable choice for your business and the environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A600 and Q600 are NEMA (National Electrical Manufacturers Association) ratings for the contact capacity in AC and DC circuits, respectively. A600 indicates the relay can handle making/breaking 10A at 600V AC, while Q600 relates to its performance in DC circuits, ensuring it's suitable for a wide range of industrial control applications in North America.

Yes, the TeSys K series is modular. You can typically add front-mounting auxiliary contact blocks to expand the number of NO or NC contacts, providing greater flexibility for your control circuit design.

The module is likely a surge suppressor (e.g., LA4KE1FC), designed to clip onto the relay. It protects the control coil from voltage spikes, which can extend the life of the relay and protect sensitive control electronics like PLC outputs. It is recommended but not always mandatory for operation.
