Schneider Electric TeSys K Control Relay

Description

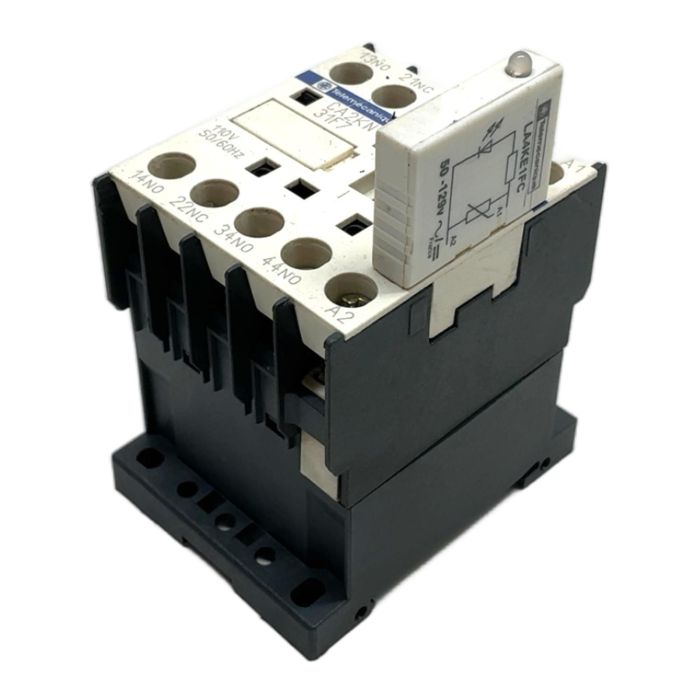

The Schneider Electric CA2KN31F7 is a high-performance control relay from the TeSys K series, engineered for demanding industrial control applications. It provides a reliable interface for switching control circuits, featuring a compact design suitable for high-density panels. This unit is equipped with a 110V AC coil and a 3 NO + 1 NC contact arrangement. Additionally, it includes a pre-mounted LA4KE1FC surge suppressor module to protect against voltage transients.

Specifications

• Manufacturer: Schneider Electric
• Product Range: TeSys K
• Model: CA2KN31F7
• Coil Voltage: 110V AC, 50/60Hz
• Contact Configuration: 3 Normally Open (NO), 1 Normally Closed (NC)
• Conventional Free Air Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 690 V
• Included Accessory: LA4KE1FC RC Surge Suppressor Module (50-127V AC)

Label Info

• Standards: IEC 947, NFC 63110, VDE 0660, BS 5424
• Certifications: UL, CSA, CE
• NEMA Rating: A600, Q600

Application

Ideal for use in industrial automation, material handling, packaging machinery, and commercial HVAC systems for logic control, signal switching, and interfacing with PLCs.

Country of Origin

This product is made in France.

CO2 Impact

By purchasing this pre-owned item, you help avoid the emission of approximately 6.8 kg of CO2. This is comparable to the carbon savings from not driving a car for 34 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The LA4KE1FC is an RC (Resistor-Capacitor) surge suppressor. It is connected across the coil terminals (A1 and A2) to dampen high-voltage spikes that occur when the relay coil is de-energized, protecting sensitive electronics in the control circuit.

No, this is a control relay, not a power contactor. Its contacts are rated for a thermal current of 10A (AC-1) and are intended for control circuits (AC-15/DC-13). For switching motors, you should use a TeSys K power contactor like the LC1K series, sized appropriately for the motor's power rating.

A600 and Q600 are NEMA contact ratings for pilot duty applications. A600 applies to AC circuits, indicating it can make 6000VA and break 600VA at voltages up to 600V AC. Q600 applies to DC circuits, indicating a resistive load rating at specific DC voltages. These ratings confirm its suitability for industrial control applications in North America.
