Schneider Electric TeSys K Control Relay

Description

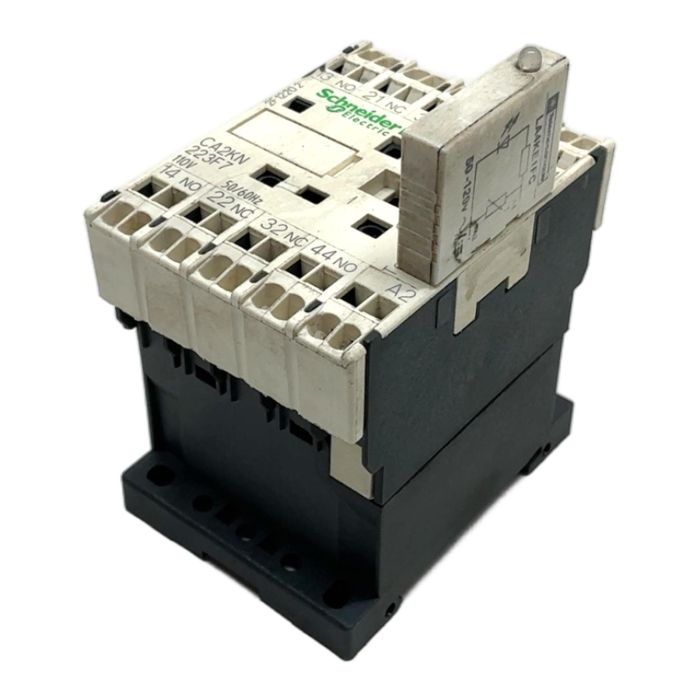

The CA2KN223F7 is a high-quality control relay from the Schneider Electric TeSys K series. It is engineered for demanding industrial control applications, offering a compact design without compromising on performance. This relay features a 110V AC coil and a 2NO/2NC contact arrangement, making it versatile for various logic and control tasks. This unit comes with a pre-installed LA6KE1FC RC suppressor module.

Specifications

• Manufacturer: Schneider Electric
• Series: TeSys K
• Model: CA2KN223F7
• Coil Voltage: 110V AC at 50/60 Hz
• Contact Configuration: 2 Normally Open (NO), 2 Normally Closed (NC)
• Conventional Free Air Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 690V
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Accessory: LA6KE1FC RC Suppressor Module

Label Info

• Brand: Schneider Electric / Telemecanique
• Part Number: CA2KN223F7
• Standard: IEC/EN 60947-5-1

Application

Ideal for use in industrial automation panels, machine control circuits, and any application requiring reliable low-power switching. Its compact size is perfect for installations where space is limited.

Country of Origin

Made in France.

CO2 Impact

By purchasing this reused item, you are helping to avoid approximately 7.2 kg of CO2 emissions that would be generated from manufacturing a new one.

Availability

This is a used item in excellent working condition. Available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

This relay is designed for switching control circuits in industrial automation systems, such as controlling larger contactors, indicator lamps, or small motors.

Yes, the TeSys K series is compatible with front or side-mounted auxiliary contact blocks, allowing for easy expansion of switching capabilities.

The "F7" suffix specifies the coil voltage of the relay. In this case, it indicates a 110V AC coil suitable for both 50 Hz and 60 Hz networks.
