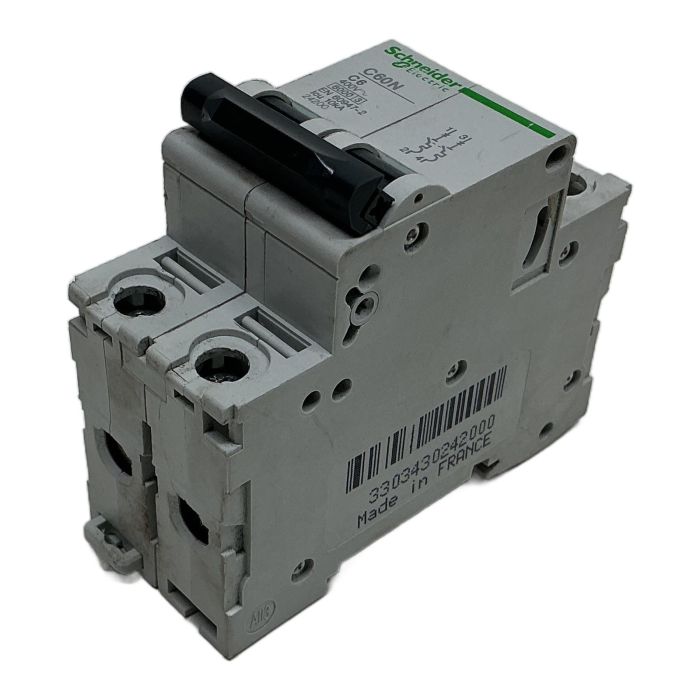

Schneider Electric C60N 6A 2-Pole Circuit Breaker

Description

This is a C60N series miniature circuit breaker (MCB) from Schneider Electric, part number 24200. It is designed to provide essential overcurrent and short-circuit protection in electrical installations. As a 2-pole device with a 6A C-curve rating, it is suitable for a wide range of applications, including the protection of lighting circuits, socket outlets, and other general loads.

Specifications

• Manufacturer: Schneider Electric
• Series: C60N (Multi 9)
• Part Number: 24200
• Rated Current: 6A
• Number of Poles: 2P
• Tripping Curve: C
• Rated Voltage (Ue): 400V AC 50/60Hz
• Breaking Capacity (Icu): 10 kA according to IEC/EN 60947-2
• Rated Insulation Voltage (Ui): 500V AC
• Rated Impulse Withstand Voltage (Uimp): 6 kV

Label Info

• Schneider Electric C60N C6
• IEC/EN 60947-2
• EAN: 3303430242000

Application

Ideal for use in industrial control panels, commercial distribution boards, and residential applications where reliable circuit protection is required. Its C-curve characteristic makes it well-suited for circuits with moderate inrush currents.

Country of Origin

Made in France.

CO2 Impact

Opting for a reconditioned component like this one prevents the emission of approximately 10 kg of CO2 compared to manufacturing a new one. This saving is comparable to the emissions from a 50 km car journey.

Availability

This item is a reliable, tested, used part from our inventory. While obsolete from the manufacturer, it serves as a crucial spare part for existing systems. Order now from PLC2Day for expert support and fast delivery.

FAQ

The iC60N is the successor and features enhancements like VisiSafe (guaranteed green strip for safe downstream work) and VisiTrip (red indicator to quickly identify a faulted breaker). The iC60N is also part of the fully integrated Acti 9 communication system, whereas the C60N is a standalone component.

Yes, many C60N models are rated for DC applications. However, the voltage and breaking capacity ratings are different for DC operation compared to AC. It is crucial to consult the official Schneider Electric datasheet for the C60N series to verify the specific DC performance for part number 24200 before use.

The 'C' indicates the tripping curve of the breaker. A C-curve breaker is designed to trip magnetically between 5 and 10 times its rated current (in this case, between 30A and 60A). This makes it suitable for general purpose applications with devices that have a moderate inrush current, such as lighting, standard outlets, and small motors.
