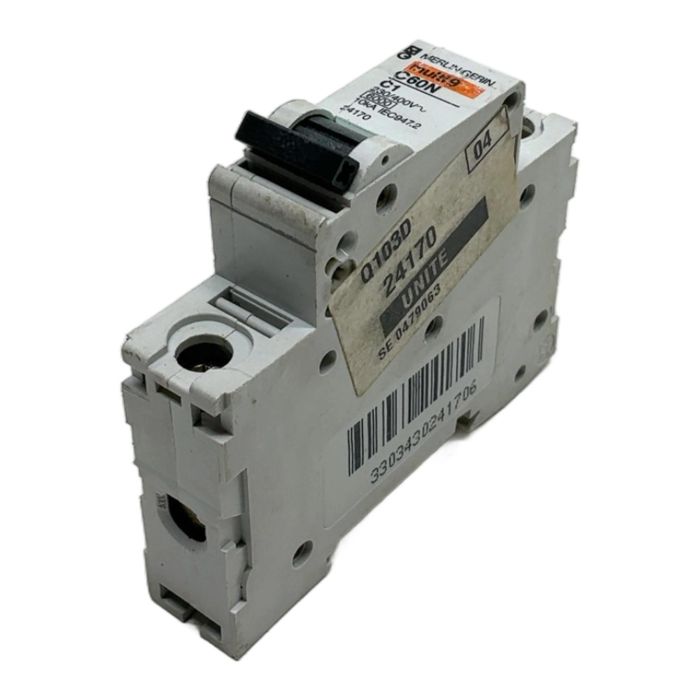

Schneider Electric C60N 24170 Miniature Circuit Breaker

Description

The Schneider Electric C60N 24170 is a high-performance, single-pole miniature circuit breaker (MCB) from the renowned Multi 9 series, originally branded as Merlin Gerin. This device provides essential overcurrent and short-circuit protection for electrical circuits in industrial, commercial, and residential environments. With a C-curve tripping characteristic, it is well-suited for general loads with moderate inrush currents.

Specifications

• Manufacturer: Schneider Electric (Merlin Gerin)
• Product Line: Multi 9
• Model: C60N
• Part Number: 24170
• Poles: 1-Pole (1P)
• Rated Current: 1 Ampere
• Tripping Curve: C
• Rated Voltage: 230/400V AC
• Breaking Capacity (Icn): 6000A according to IEC/EN 60898-1
• Breaking Capacity (Icu): 10kA according to IEC/EN 60947-2
• Mounting: DIN Rail

Label Info

• Brand: Merlin Gerin
• Model: Multi 9 C60N
• Type Code: C1
• Order Code: 24170
• EAN: 3303430241706

Application

This MCB is ideal for the protection of final circuits, including lighting systems, socket outlets, control circuits, and other general-purpose electrical loads that do not exhibit high starting currents.

Country of Origin

This product is typically manufactured in France.

CO2 Impact

By purchasing this pre-owned circuit breaker, you are helping to avoid the production of a new one, which saves an estimated 4.8 kg of CO2. This saving is comparable to the emissions from driving a car for 24 km.

Availability

This item is a discontinued model but is available from our stock. It is a reliable replacement for existing installations featuring the Multi 9 C60N series. Order now from PLC2Day for expert support and fast delivery.

FAQ

The '6000' (or 6kA) rating is according to the IEC/EN 60898-1 standard, typically used for residential and similar applications. The 10kA rating is according to the more stringent IEC/EN 60947-2 standard for industrial applications, which involves a more demanding testing sequence. This dual rating makes the breaker versatile.

The 'C' refers to its tripping curve characteristic. A C-curve breaker is designed to trip between 5 to 10 times its rated current (1A in this case). It is a general-purpose curve suitable for protecting circuits with moderate inrush currents, such as lighting, control circuits, and general socket outlets.

Yes, the Merlin Gerin Multi 9 C60N series shares the same physical profile and DIN-rail mounting standard as the modern Schneider Electric Acti 9 series. It will fit mechanically in Acti 9 boards and can be used alongside them. However, official busbar accessories and clip-on auxiliaries may have different designs, so compatibility for those should be checked on a case-by-case basis.
