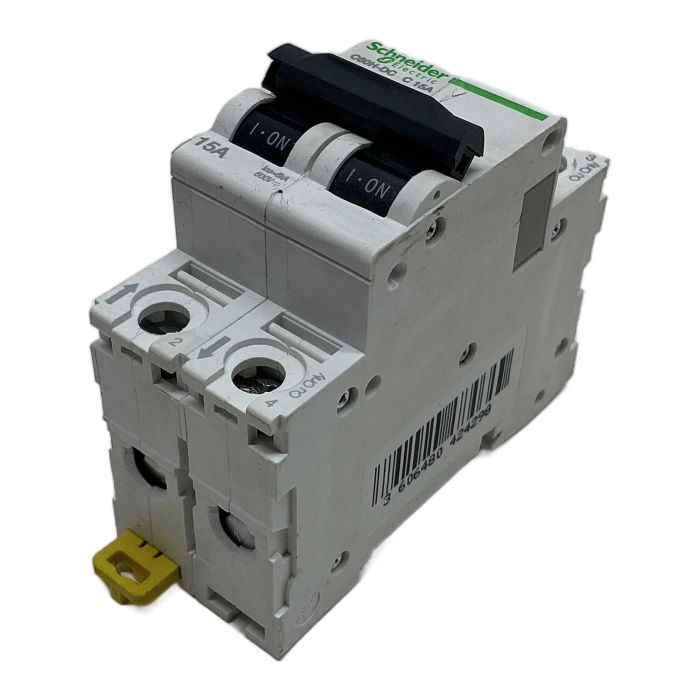

Schneider Electric C60H-DC 15A 2-Pole Circuit Breaker

Description

This is a C60H-DC series miniature circuit breaker (MCB) from Schneider Electric, part number A9N61511. It is a 2-pole device with a 15A rating and a C tripping curve, specifically designed for use in DC circuits. Part of the trusted Acti 9 range, it offers reliable protection against short circuits and overloads in demanding industrial and commercial environments.

Specifications

• Manufacturer: Schneider Electric
• Part Number: A9N61511
• Model: C60H-DC C15A
• Series: Acti 9
• Rated Current: 15 A
• Number of Poles: 2-Pole
• Tripping Curve: C
• Rated Voltage: Up to 500 V DC
• Standard: IEC/EN 60947-2

Label Info

• Breaking Capacity (Icu): 6kA at 500V, 10kA at 440V, 20kA at 220V
• Impulse Voltage (Uimp): 6kV
• Recommended Torque: 2.5 N.m for 1-25 mm2 wire

Application

Ideal for protecting DC circuits in applications such as photovoltaic systems, energy storage, DC motor control, and telecommunications power supplies.

Country of Origin

Made in China.

CO2 Impact

By choosing this pre-owned component, you are avoiding the emission of approximately 10.0 kg of CO2 associated with the production of a new one. This saving is comparable to the emissions from driving a car for 50 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

No, this breaker is specifically designed and certified for Direct Current (DC) applications according to IEC/EN 60947-2. Using it on AC circuits can be unsafe and may not provide proper protection.

The 'C' curve is a tripping characteristic. It means the breaker will trip instantaneously at 5 to 10 times its rated current (15A). This makes it suitable for general applications with moderate inrush currents, like resistive and inductive loads.

According to the label, for a current rating up to 25A, you can use a wire size of 1-25 mm squared. The recommended tightening torque is 2.5 Newton-meters (N.m).
