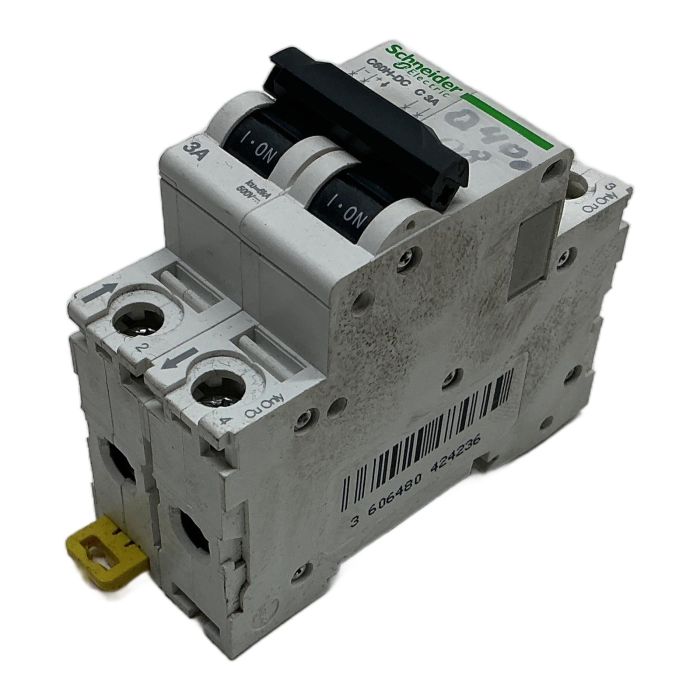

Schneider Electric C60H-DC Miniature Circuit Breaker

Description

The Schneider Electric A9N61523 is a C60H-DC series miniature circuit breaker (MCB) designed for superior protection in direct current (DC) electrical systems. This 2-pole device has a rated current of 3A and features a C tripping curve, making it suitable for circuits with moderate inrush currents. It provides essential protection against both short-circuits and overloads, ensuring the safety and reliability of your DC installations, such as solar power systems, battery backup units, and industrial control panels.

Specifications

• Manufacturer: Schneider Electric
• Model: C60H-DC
• Part Number: A9N61523
• Poles: 2P
• Rated Current: 3 A
• Tripping Curve: C
• Rated Voltage (Ue): Up to 500V DC
• Breaking Capacity (Icu): 6kA at 500V DC, 10kA at 440V DC, 20kA at 220V DC
• Impulse Withstand Voltage (Uimp): 6kV
• Mounting Type: DIN Rail
• Standard: IEC/EN 60947-2

Label Info

• Brand: Schneider Electric
• Type: C60H-DC C 3A
• EAN: 3606480424236

Application

This DC circuit breaker is ideal for use in photovoltaic installations, energy storage systems, uninterruptible power supplies (UPS), telecommunications equipment, and transportation applications where reliable DC circuit protection is critical.

Country of Origin

This product is Made in China.

CO2 Impact

By purchasing this refurbished component, you contribute to a circular economy and help avoid approximately 10 kg of CO2 emissions compared to a new purchase. This is equivalent to the CO2 captured by a tree in over a year.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'C' curve indicates that the breaker is designed for general purpose applications with moderate inrush currents, like resistive or small inductive loads. It will trip between 5 to 10 times the rated current (3A) on a short circuit, providing a balance between protection and avoiding nuisance tripping.

No, this C60H-DC model is specifically designed and rated for Direct Current (DC) circuits. Using it in an Alternating Current (AC) system is unsafe and not compliant with electrical standards, as the arc-quenching mechanism is different for DC and AC.

Unlike AC breakers, DC breakers like this one are polarized. This means the positive (+) and negative (-) wires from the power source and to the load must be connected to the specific terminals marked on the breaker. Reversing the polarity can compromise its ability to safely interrupt a fault current.
