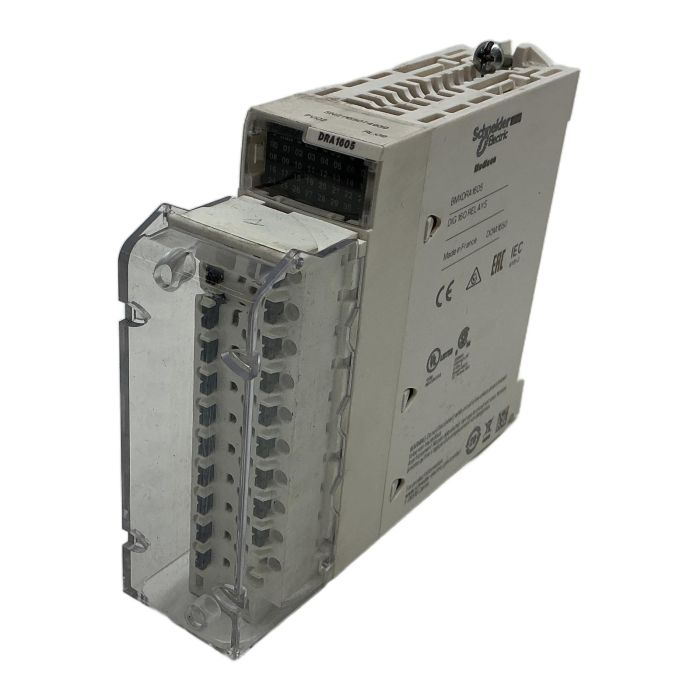

Schneider Electric BMXDRA1605 Digital Relay Output Module

Description

The Schneider Electric BMXDRA1605 is a discrete relay output module for the Modicon M340 and Modicon M580 automation platforms. It provides 16 normally open (NO) relay channels, making it suitable for controlling a wide variety of AC and DC loads. This module is engineered for reliability and offers galvanic isolation to protect your PLC system. It comes with a 20-pin removable screw terminal block (BMXFTB2020) for straightforward wiring and maintenance. Order now from PLC2Day for expert support and fast delivery.

Specifications

• Manufacturer: Schneider Electric
• Product Line: Modicon
• Type Number: BMXDRA1605
• Module Type: Digital Relay Output Module
• Number of Outputs: 16
• Output Type: Normally Open (NO) Relay
• Output Voltage: 24 to 240V AC / 24V DC
• Current per Channel: 2 A
• Connection: Removable 20-pin screw terminal block (BMXFTB2020)

Label Info

• Model: BMXDRA1605
• DOM: 1650 (Week 50, 2016)
• Terminal Block: BMXFTB2020

Application

This module is widely used in industrial automation for controlling actuators, motors, lamps, solenoids, and other devices within manufacturing, process control, and building automation systems.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned module, you are contributing to a circular economy and have helped avoid approximately 7.2 kg of CO2 emissions compared to a new product. This is equivalent to the emissions from driving a car for 36 kilometers.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

Is this module compatible with both Modicon M340 and M580 systems?

Yes, the BMXDRA1605 is designed for use with both the Modicon M340 and Modicon M580 automation platforms, offering flexibility in system design and upgrades.

Each of the 16 normally open (NO) relay outputs is rated for a maximum current of 2 Amperes (2A) for both AC and DC loads within the specified voltage range.

The module itself is powered by the PLC backplane. However, the relay outputs are potential-free contacts, meaning you must supply the appropriate external power source for the load you intend to switch.
