Schneider Electric Modicon BMXDDO1602 Digital Output Module

Description

The BMXDDO1602 is a high-performance discrete DC output module for the Schneider Electric Modicon M340 and M580 automation platforms. It features 16 source-type transistor outputs, each capable of delivering up to 0.5A at 24V DC. This module is engineered for reliability and precision in controlling actuators, lamps, and other DC loads in industrial control applications.

Specifications

• Manufacturer: Schneider Electric
• Product Range: Modicon M340 / M580
• Model: BMXDDO1602
• Product Type: Discrete DC Output Module
• Number of Outputs: 16
• Output Voltage: 24V DC
• Output Logic: Positive logic (Source)
• Current per Channel: 0.5 A
• Total Module Current: 8 A
• Protection: Overload, short-circuit, and reverse polarity protection

Label Info

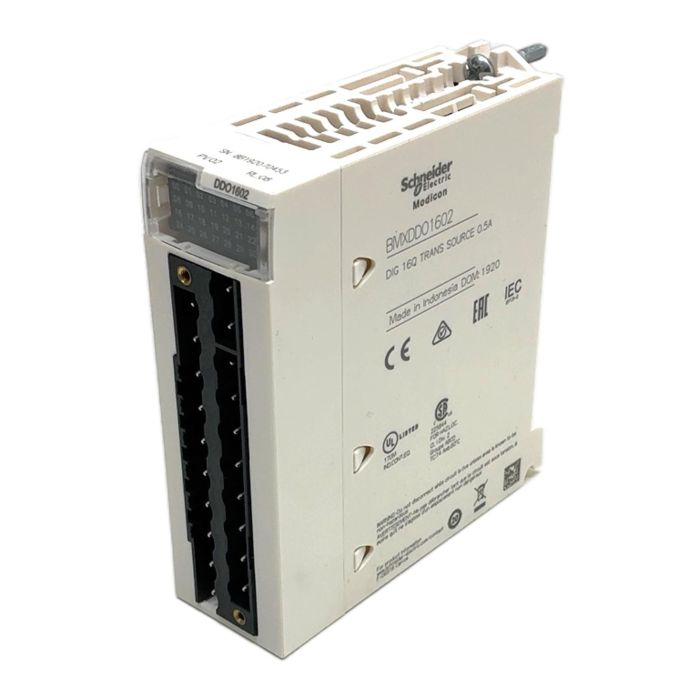

• Type: BMXDDO1602
• Description: DIG 16Q TRANS SOURCE 0.5A
• Made in: Indonesia

Application

This module is ideal for applications requiring the control of multiple DC-powered devices such as solenoid valves, contactor coils, and indicator lights within a PLC-based control system. Its robust design makes it suitable for use in manufacturing, process control, and building automation.

Country of Origin

This product is manufactured in Indonesia.

CO2 Impact

Opting for this pre-owned unit saves approximately 4.4 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the difference between a 'source' and 'sink' output module?

A 'source' module, like the BMXDDO1602, provides a positive voltage (supplies current) to the load. The load is then connected to the common (0V) ground. A 'sink' module connects the load to ground, and the load must be supplied with a positive voltage from an external source.

Is the BMXDDO1602 module compatible with the Modicon M580 series PLC racks?

Yes, the BMXDDO1602 is fully compatible with both the Modicon M340 and the newer Modicon M580 PLC platforms, offering flexibility in system design and upgrades.

What type of protection does the BMXDDO1602 offer for its outputs?

The module features integrated protection against overloads, short-circuits, and reverse polarity on its outputs. This protects both the module and the connected devices from potential damage due to electrical faults.
