Schneider Electric Modicon M340/M580 Digital Input Module

Description

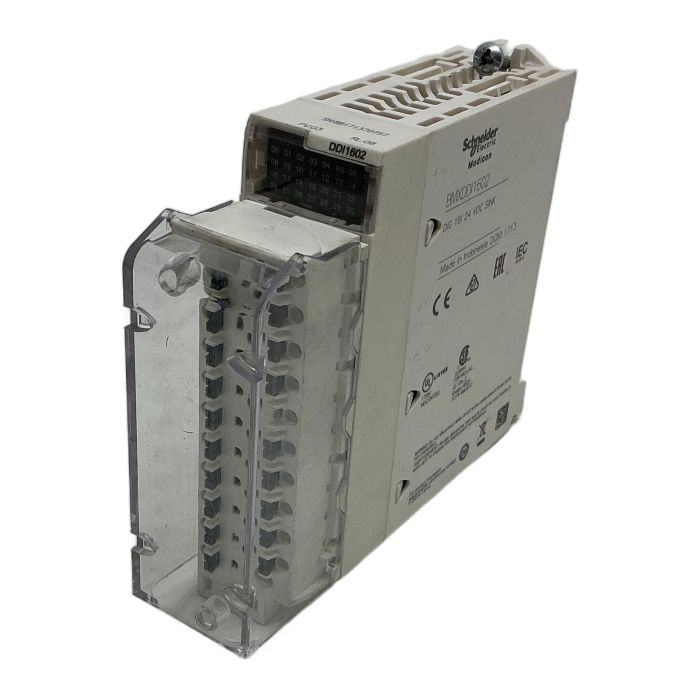

The BMXDDI1602 is a high-density discrete input module for the Schneider Electric Modicon M340 and M580 PLC systems. It offers 16 digital input channels that operate on a 24V DC signal with sink logic. This module is ideal for applications requiring a large number of sensor or switch inputs in a compact form factor. This specific unit comes complete with a BMXFTB2020 removable screw terminal block for easy wiring and maintenance. Please note: one of the small orange push buttons on the terminal block is missing, but this does not affect the electrical functionality of the terminal connection.

Specifications

• Manufacturer: Schneider Electric
• Series: Modicon M340 / M580
• Product Type: Digital Input Module
• Model: BMXDDI1602
• Number of Inputs: 16
• Input Voltage: 24V DC
• Input Logic: Sink (Positive Logic)
• Associated Terminal Block: BMXFTB2020 (20-pin screw terminal)

Label Info

• DOM (Date of Manufacture): 1713 (Week 13, 2017)

Application

This module is used in a wide range of industrial automation systems, including manufacturing lines, process control, building automation, and infrastructure projects where reliable digital signal acquisition is critical.

Country of Origin

Made in Indonesia.

CO2 Impact

Opting for this pre-owned module over a new one prevents the emission of approximately 4.8 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, this module is designed for seamless integration with both the Modicon M340 and the newer Modicon M580 ePAC automation platforms.

This is a SINK input module (positive logic). This means that to activate an input, you must apply a positive voltage (e.g., +24V DC) to the input terminal, and the module provides the common ground (0V). A SOURCE module would be the opposite, providing the +24V and requiring a 0V signal to activate the input.

Yes. While this unit is supplied with the BMXFTB2020 screw terminal block, Schneider Electric also offers compatible spring-cage terminal blocks, such as the BMXFTB2010, for this module if your application requires it.
