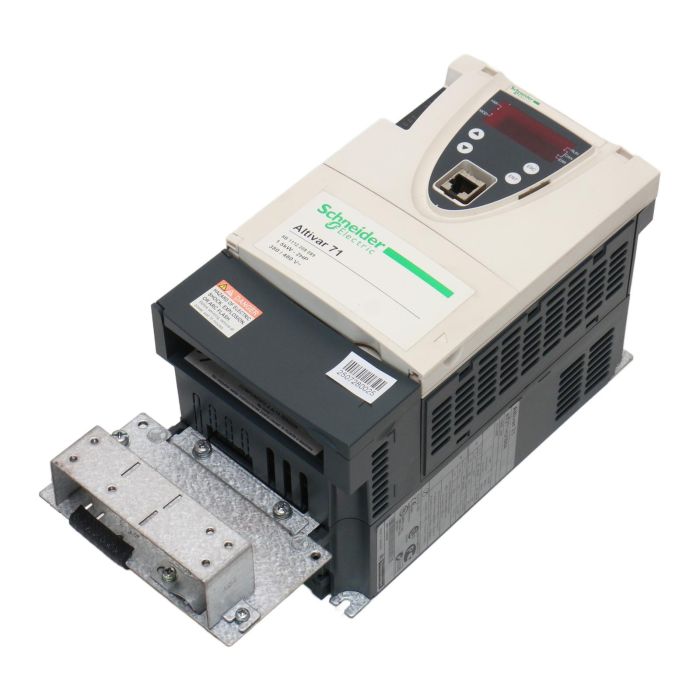

ATV71HU15N4: Variable Speed Drive ATV71 - 1.5kW-2HP - 480V - EMC Filter-Graphic Terminal

Product Description

The ATV71HU15N4 is a variable speed drive designed for complex, high-power machines. It provides precise control over motor speed and performance, making it ideal for industrial applications.

Product Specifications

Range of product: Altivar 71
Product or component type: Variable speed drive
Motor power: 1.5 kW (2 HP) at 380-480V
Maximum motor cable length: 50m shielded cable, 100m unshielded cable
Power supply voltage: 380-480V
Network number of phases: 3 phases
Line current: 5.3A (480V), 5.8A (380V)
EMC filter: Integrated
Assembly style: With heat sink
Apparent power: 3.8 kVA at 380V
Nominal output current: 3.4A (460V), 4.1A (380V)
Maximum transient current: 6.2A for 60s, 6.8A for 2s

Product Label Info

Model Code / Product Markings: ATV71HU15N4
Altivar 71, ATV71HU15N4, 1.5kW - 2HP, V3.3 IE66
Input: 380-480V 3, Output: 0-380-480 3, F (Hz): 50/60, FLA: 3.4A, Short Circuit Withstand: 5000A 480V
UL Class CC: 12A max, Motor Overload Protection: Class 10, Cu AWG 14: 75°C 10.6 lb.in/1.2 N.m

Application

The ATV71HU15N4 is suitable for use in various industrial environments, providing reliable control over high-power machinery.

Country of Origin

This product is manufactured in Indonesia.

Method of Application

Installation of the ATV71HU15N4 is straightforward, and it integrates seamlessly with existing control systems for enhanced performance.

Safety Instructions

Ensure proper grounding and follow all safety guidelines provided in the product manual to prevent accidents or damage.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Schneider Electric
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the ATV71HU15N4 used for?

This variable speed drive is typically used in industrial settings to control the speed and performance of high-power machines.

What are the key advantages of the ATV71HU15N4?

The ATV71HU15N4 offers precise control, energy efficiency, and reliable performance, making it a top choice for complex industrial applications.

Is ATV71HU15N4 compatible with my system?

If you are using Schneider Electric control systems, especially those compatible with the Altivar 71 series, then the ATV71HU15N4 will likely integrate seamlessly. Contact us to verify compatibility.

Alternatives to ATV71HU15N4

If you are looking for similar variable speed drives, consider exploring other models within the Altivar 71 range for comparable functionality and performance.

Can I sell my surplus stock to PLC2DAY?

Yes, PLC2Day accepts surplus stock and collaborates with companies to recover excess inventory. Contact us for more information on surplus recovery and resale agreements.
