Description: Variable speed drive ATV71 - 75kW-100HP - 480V - EMC filter-graphic terminal, Frontcolor: Dark-Grey: Include: VW3A1101, Altivar Graphic Display, Small Cover Plate (Photo). , Product Info: Range of Product, Altivar 71, Product or Component Type, Variable speed drive, Product Specific Application, Complex, high-power machines, Component name, ATV71, Motor power kW, 75 kW, 3 phase 380...480 V, Maximum Horse Power Rating, 100 hp, 3 phase 380...480 V, Maximum motor cable length, 328.08 ft (100 m) shielded cable, 656.2 ft (200 m) unshielded cable, power supply voltage, 380...480 V - 15...10 %, Phase, 3 phase, Line current, 137 A 480 V 3 phase 75 kW / 100 hp, 167 A 380 V 3 phase 75 kW / 100 hp, EMC filter, Integrated, Assembly style, With heat sink, Apparent power, 109.9 kVA 380 V 3 phase 75 kW / 100 hp, Prospective line Isc, 22 kA 3 phase, Nominal output current, 124 A 2.5 kHz 460 V 3 phase 75 kW / 100 hp, 160 A 2.5 kHz 380 V 3 phase 75 kW / 100 hp, Maximum transient current, 240 A 60 s 3 phase 75 kW / 100 hp, 264 A 2 s 3 phase 75 kW / 100 hp, Label Info: Altivar 71, ATV71HD75N4, 75kW - 100HP, V3.3 IE66, Input, Alimentation, Entrada, Output, Sortie, Salida, U(V-), 380...480 3, 0...380-4803, KW, F(Hz), I(A), 50/60, 0...500, 167 max, 160, HP, U(V-), F(Hz), 460...480 3, 0...460 3, (A), 60, 137, 0...500, FLA 124, Short Circuit Withstand 10000 A., 480V, when protected by fuse, UL Class J 225A max, Motor Overload Protection - Class 10, Proteccion Sobrecarga Motor - Clase 10, Protection Surcharge Moteur - Classe 10, Cu AWG 3/0 75 C, 168lb in /19N m, 11 (2) GD, CE, 0080, INERIS 07ATEX0004X, UL LISTED 170M, IND.CONT EQ, E116875, SP, CSA-B44.1/ASME-A17.5, 224330, PC, 6W1138000307, Made in China, Tested in France, ME79, N998, Telemecanique

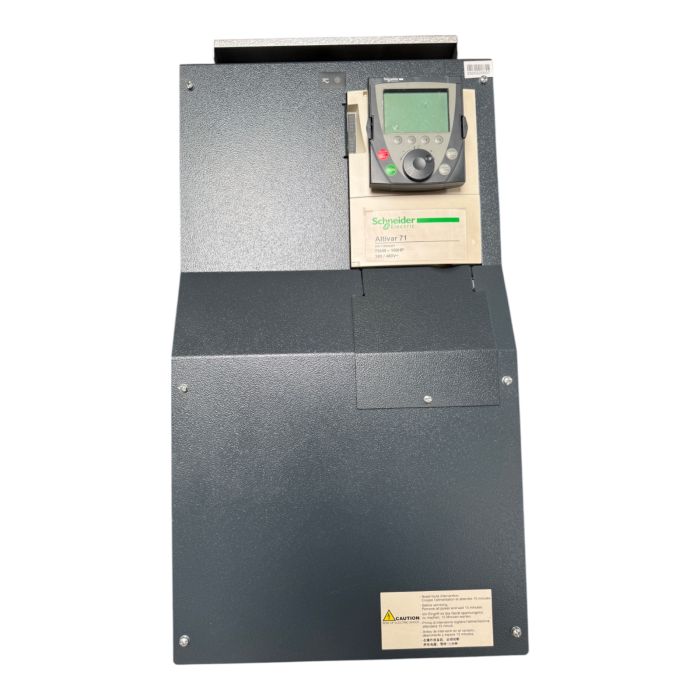

• Description: Variable speed drive ATV71 - 75kW-100HP - 480V - EMC filter-graphic terminal
• Frontcolor: Dark-Grey
• Include: VW3A1101, Altivar Graphic Display, Small Cover Plate (Photo)
• Product Info:
  • Range of Product: Altivar 71
  • Product or Component Type: Variable speed drive
  • Product Specific Application: Complex, high-power machines
  • Component name: ATV71
  • Motor power kW: 75 kW, 3 phase 380...480 V
  • Maximum Horse Power Rating: 100 hp, 3 phase 380...480 V
  • Maximum motor cable length: 328.08 ft (100 m) shielded cable, 656.2 ft (200 m) unshielded cable
  • Power supply voltage: 380...480 V - 15...10 %
  • Phase: 3 phase
  • Line current: 137 A 480 V 3 phase 75 kW / 100 hp, 167 A 380 V 3 phase 75 kW / 100 hp
  • EMC filter: Integrated
  • Assembly style: With heat sink
  • Apparent power: 109.9 kVA 380 V 3 phase 75 kW / 100 hp
  • Prospective line Isc: 22 kA 3 phase
  • Nominal output current: 124 A 2.5 kHz 460 V 3 phase 75 kW / 100 hp, 160 A 2.5 kHz 380 V 3 phase 75 kW / 100 hp
  • Maximum transient current: 240 A 60 s 3 phase 75 kW / 100 hp, 264 A 2 s 3 phase 75 kW / 100 hp
• Label Info: Altivar 71, ATV71HD75N4, 75kW - 100HP, V3.3 IE66, Input, Alimentation, Entrada, Output, Sortie, Salida, U(V-), 380...480 3, 0...380-4803, KW, F(Hz), I(A), 50/60, 0...500, 167 max, 160, HP, U(V-), F(Hz), 460...480 3, 0...460 3, (A), 60, 137, 0...500, FLA 124, Short Circuit Withstand 10000 A., 480V, when protected by fuse, UL Class J 225A max, Motor Overload Protection - Class 10, Proteccion Sobrecarga Motor - Clase 10, Protection Surcharge Moteur - Classe 10, Cu AWG 3/0 75 C, 168lb in /19N m, 11 (2) GD, CE, 0080, INERIS 07ATEX0004X, UL LISTED 170M, IND.CONT EQ, E116875, SP, CSA-B44.1/ASME-A17.5, 224330, PC, 6W1138000307, Made in China, Tested in France, ME79, N998, Telemecanique

Schneider Electric ATV71HD75N4 + VW3A1101

Schneider Electric offers the ATV71HD75N4 + VW3A1101, ideal for various industrial applications such as automation, packaging, conveyors, and HVAC systems. Purchase this item at PLC2Day.
