Description: ATV71HD75N4: Variable speed drive ATV71 - 75kW-100HP - 480V - EMC filter-graphic terminal, Frontcolor: Dark-Grey: Exclude: Altivar Graphic Display, Small Cover Plate (Photo). , Product Info: Main, Range of Product, Altivar 71, Product or Component Type, Variable speed drive, Product Specific Application, Complex, high-power machines, Component name, ATV71, Motor power kW, 75 kW, 3 phase 380...480 V, Maximum Horse Power Rating, 100 hp, 3 phase 380...480 V, Maximum motor cable length, 328.08 ft (100 m) shielded cable, 656.2 ft (200 m) unshielded cable, power supply voltage, 380...480 V - 15...10 %, Phase, 3 phase, Line current, 137 A 480 V 3 phase 75 kW / 100 hp, 167 A 380 V 3 phase 75 kW / 100 hp, EMC filter, Integrated, Assembly style, With heat sink, Apparent power, 109.9 kVA 380 V 3 phase 75 kW / 100 hp, Prospective line Isc, 22 kA 3 phase, Nominal output current, 124 A 2.5 kHz 460 V 3 phase 75 kW / 100 hp, 160 A 2.5 kHz 380 V 3 phase 75 kW / 100 hp, Maximum transient current, 240 A 60 s 3 phase 75 kW / 100 hp, 264 A 2 s 3 phase 75 kW / 100 hp, Label Info: 1, Altivar 71, ATV71HD75N4, 75kW-100HP, V6.5 IE78, Input, Alimentation, Output, Sortie, Entrada, Salida, U(V-), 380...480 3, 0...380-4803, KW, F(Hz), 50/60, 0...500, (A), 167 max, 160, U(V-), 460...480 3, O...460 3, HP, F(Hz), I(A), 60, 137, 0...500, FLA 124, Short Circuit Withstand 10000 A, 480V, when protected by fuse, UL Class J 225A max, Motor Overload Protection - Class 10, Proteccion Sobrecarga Motor - Clase 10, Protection Surcharge Moteur - Classe 10, Cu AWG 3/0 : 75°C, 360lb.in/41N.m, II (2) GD, SP, B44.1/ASME-A17.5, CE SEAL, 0080, INERIS 07ATEX0004X, UL LISTED 170M, IND.CONT.EQ., E116875, 224330, KCC-REI-Sak, -ATV71HD75N4, tr☑N998, 6W1447000273, Designed by Schneider Electric in France, Tested and Verified by Schneider Electric in France Telemecanique, Made in India

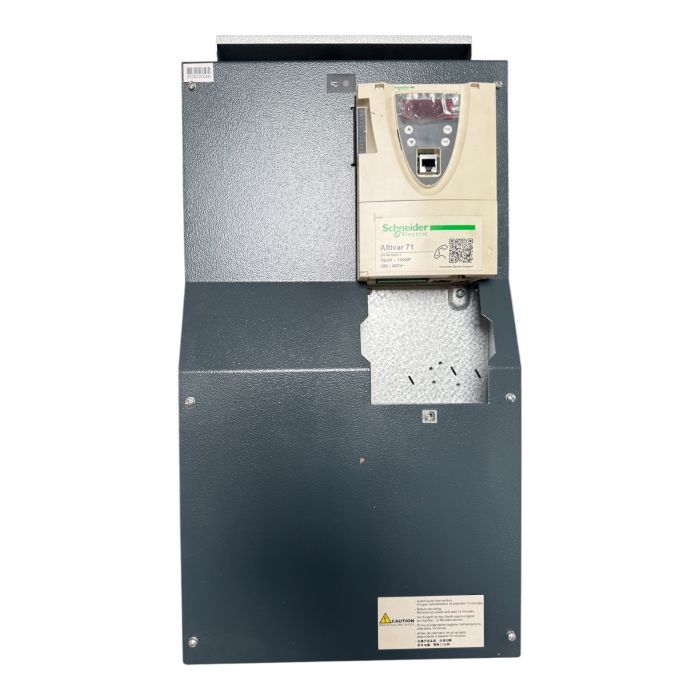

• Description: ATV71HD75N4: Variable speed drive ATV71 - 75kW-100HP - 480V - EMC filter-graphic terminal
• Frontcolor: Dark-Grey
• Exclude: Altivar Graphic Display, Small Cover Plate (Photo)
• Product Info: Main
• Range of Product: Altivar 71
• Product or Component Type: Variable speed drive
• Product Specific Application: Complex, high-power machines
• Component name: ATV71
• Motor power kW: 75 kW
• 3 phase 380...480 V
• Maximum Horse Power Rating: 100 hp
• 3 phase 380...480 V
• Maximum motor cable length: 328.08 ft (100 m) shielded cable, 656.2 ft (200 m) unshielded cable
• Power supply voltage: 380...480 V - 15...10 %
• Phase: 3 phase
• Line current: 137 A 480 V 3 phase 75 kW / 100 hp, 167 A 380 V 3 phase 75 kW / 100 hp
• EMC filter: Integrated
• Assembly style: With heat sink
• Apparent power: 109.9 kVA 380 V 3 phase 75 kW / 100 hp
• Prospective line Isc: 22 kA 3 phase
• Nominal output current: 124 A 2.5 kHz 460 V 3 phase 75 kW / 100 hp, 160 A 2.5 kHz 380 V 3 phase 75 kW / 100 hp
• Maximum transient current: 240 A 60 s 3 phase 75 kW / 100 hp, 264 A 2 s 3 phase 75 kW / 100 hp
• Label Info: 1
• Altivar 71, ATV71HD75N4, 75kW-100HP, V6.5 IE78, Input, Alimentation, Output, Sortie, Entrada, Salida, U(V-), 380...480 3, 0...380-4803, KW, F(Hz), 50/60, 0...500, (A), 167 max, 160, U(V-), 460...480 3, O...460 3, HP, F(Hz), I(A), 60, 137, 0...500, FLA 124, Short Circuit Withstand 10000 A, 480V, when protected by fuse, UL Class J 225A max, Motor Overload Protection - Class 10, Proteccion Sobrecarga Motor - Clase 10, Protection Surcharge Moteur - Classe 10, Cu AWG 3/0 : 75°C, 360lb.in/41N.m, II (2) GD, SP, B44.1/ASME-A17.5, CE SEAL, 0080, INERIS 07ATEX0004X, UL LISTED 170M, IND.CONT.EQ., E116875, 224330, KCC-REI-Sak, -ATV71HD75N4, tr☑N998, 6W1447000273, Designed by Schneider Electric in France, Tested and Verified by Schneider Electric in France Telemecanique, Made in India

ATV71HD75N4

Schneider Electric presents the ATV71HD75N4, an industrial drive suitable for various applications such as automation, packaging, conveyors, HVAC, and more. This item is available for purchase at PLC2Day.

For more items from Schneider Electric, visit our manufacturer's page.

Visit the official website for more product details: Schneider Electric
