Description: ATV71HD55N4: Variable speed drive ATV71 - 55kW-75HP - 480V - EMC filter - graphic terminal, EAN: 3389118069541, Include: VW3A1101: Altivar - Graphic display - 240x160 pixels - IP54, EAN: 3389118069305. Color Frontpanel: Dark-Grey, Include: Mounting plate, Exclude: Small cover plate, (Photo)., Product Info: , Range of Product, Altivar 71, Product or Component Type, Variable speed drive, Product Specific Application, Complex, high-power machines, Component name, ATV71, Motor power kW, 55 kW, 3 phase 380...480 V, Maximum Horse Power Rating, 75 hp, 3 phase 380...480 V, Maximum motor cable length, 328.08 ft (100 m) shielded cable, 656.2 ft (200 m) unshielded cable, power supply voltage, 380...480 V - 15...10 %, Phase, 3 phase, Line current, 101 A 480 V 3 phase 55 kW / 75 hp, 120 A 380 V 3 phase 55 kW / 75 hp, EMC filter, Integrated, Assembly style, With heat sink, Apparent power, 79 kVA 380 V 3 phase 55 kW / 75 hp, Prospective line Isc, 22 kA 3 phase, Nominal output current, 116 A 2.5 kHz 380 V 3 phase 55 kW / 75 hp, 96 A 2.5 kHz 460 V 3 phase 55 kW / 75 hp, Maximum transient current, 174 A 60 s 3 phase 55 kW / 75 hp, 191 A 2 s 3 phase 55 kW / 75 hp, label Info: 1, Altivar 71, ATV71HD55N4, 55kW 75HP, V3.3 IE66, Input, Alimentation, Output, Sortie, Entrada, Salida, U(V-), 380...480 3, 0...380-4803, kW, F(Hz), 50/60, 0...500, (A), 120 max, 116, U(V-), 460...480 03, 0...460 3, HP, F(Hz), 60, 0...500, (A), 101, FLA 96, 0, Short Circuit Withstand 10000 A, 480V, when protected by fuse, UL Class J 175A max, Motor Overload Protection - Class 10, Proteccion Sobrecarga Motor Clase 10, Protection Surcharge Moteur - Classe 10, Cu AWG 1/0 : 75°C, II (2) GD, CE, 0080, INERIS 07ATEX0004X, UL LISTED 170M, IND.CONT.EQ., E116875, 224330, Ⓡ, 168lb.in/19N.m, CSA-B44.1/ASME-A 17.5, MF79, N998, 6W1146000430, Made in China, Tested in France, Telemecanique, Label Info: 2, VW3A1101, JHC905001015 W813788140121 A 12, CPU:V1.21E09#2 FLASH:V1.11E18 G0905, QC, PASS

• Description:

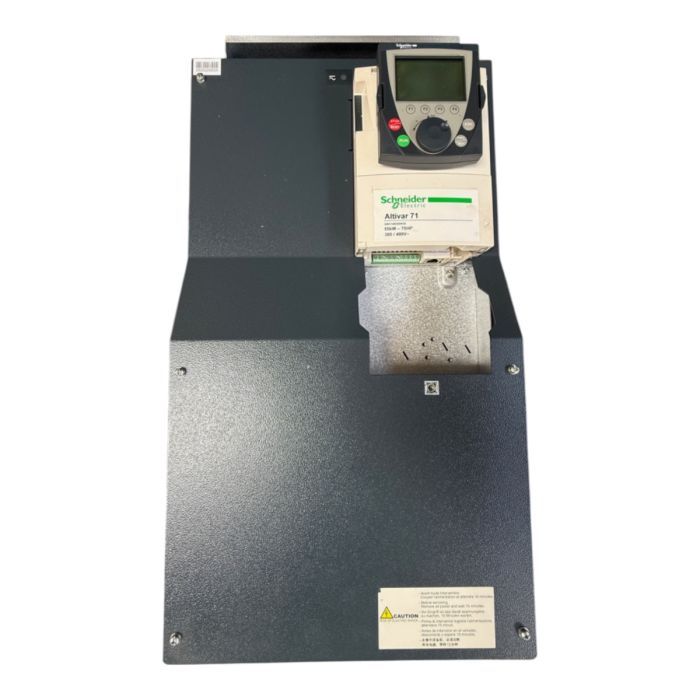

  • ATV71HD55N4: Variable speed drive ATV71 - 55kW-75HP - 480V - EMC filter - graphic terminal
  • EAN: 3389118069541
  • Include: VW3A1101: Altivar - Graphic display - 240x160 pixels - IP54
  • EAN: 3389118069305
  • Color Frontpanel: Dark-Grey
  • Include: Mounting plate
  • Exclude: Small cover plate (Photo)
• Product Info:
  • Range of Product: Altivar 71
  • Product or Component Type: Variable speed drive
  • Product Specific Application: Complex, high-power machines
  • Component name: ATV71
  • Motor power kW: 55 kW
  • 3 phase 380...480 V
  • Maximum Horse Power Rating: 75 hp
  • 3 phase 380...480 V
  • Maximum motor cable length: 328.08 ft (100 m) shielded cable, 656.2 ft (200 m) unshielded cable
  • Power supply voltage: 380...480 V - 15...10 %
  • Phase: 3 phase
  • Line current: 101 A 480 V 3 phase 55 kW / 75 hp, 120 A 380 V 3 phase 55 kW / 75 hp
  • EMC filter: Integrated
  • Assembly style: With heat sink
  • Apparent power: 79 kVA 380 V 3 phase 55 kW / 75 hp
  • Prospective line Isc: 22 kA 3 phase
  • Nominal output current: 116 A 2.5 kHz 380 V 3 phase 55 kW / 75 hp, 96 A 2.5 kHz 460 V 3 phase 55 kW / 75 hp
  • Maximum transient current: 174 A 60 s 3 phase 55 kW / 75 hp, 191 A 2 s 3 phase 55 kW / 75 hp
• Label Info:
  • 1, Altivar 71, ATV71HD55N4, 55kW 75HP, V3.3 IE66, Input, Alimentation, Output, Sortie, Entrada, Salida, U(V-), 380...480 3, 0...380-4803, kW, F(Hz), 50/60, 0...500, (A), 120 max, 116, U(V-), 460...480 03, 0...460 3, HP, F(Hz), 60, 0...500, (A), 101, FLA 96, 0, Short Circuit Withstand 10000 A, 480V, when protected by fuse, UL Class J 175A max, Motor Overload Protection - Class 10, Proteccion Sobrecarga Motor Clase 10, Protection Surcharge Moteur - Classe 10, Cu AWG 1/0 : 75°C, II (2) GD, CE, 0080, INERIS 07ATEX0004X, UL LISTED 170M, IND.CONT.EQ., E116875, 224330, Ⓡ, 168lb.in/19N.m, CSA-B44.1/ASME-A 17.5, MF79, N998, 6W1146000430, Made in China, Tested in France, Telemecanique
• Label Info:
  • 2, VW3A1101, JHC905001015 W813788140121 A 12, CPU:V1.21E09#2 FLASH:V1.11E18 G0905, QC, PASS

```html

ATV71HD55N4 + VW3A1101 by Schneider Electric

Available for purchase at PLC2Day, this product is commonly used in industrial applications such as automation, packaging, conveyors, HVAC, and more.

Manufacturer: Schneider Electric

Item Code: ATV71HD55N4 + VW3A1101

Find more items from Schneider Electric.

```Visit the official website for more product details: Schneider Electric
