• Description:

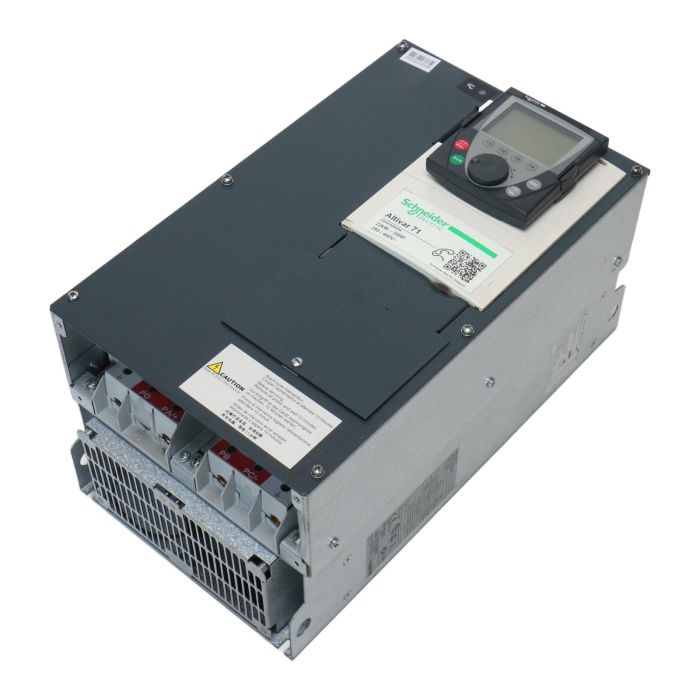

  • ATV71HD22N4: Altivar 71 - Frequency inverter - 22kW - 480V - EMC filter - Display - IP54
  • IEAN: 3389118069503
  • Include: VW 3A1101 Graphic Display
  • EAN: 3389118069305
• Product Info:
  • Range of product: Altivar 71
  • Product or component type: Speed controller
  • Product specific application: Complex high-power machines
  • Component name: ATV71
  • Engine power kW: 22 kW, 3 phases at 380...480 V
  • Engine power hp: 30 hp, 3 phases at 380...480 V
  • Maximum motor cable length: 100 m shielded cable, 200 m unshielded cable
  • Power supply voltage: 380...480 V - 15...10 %
  • Number of phases in network: 3 phases
  • Mains power: 42 A for 480 V 3 phases 22 kW / 30 hp, 50 A for 380 V 3 phases 22 kW / 30 hp
  • EMC filter: Integrated
  • Mounting style: With cooling plate
  • Apparent power: 32.9 kVA at 380 V 3 phases 22 kW / 30 hp
  • Ideal line Isc: 22 kA for 3 phases
  • Nominal output current: 40 A at 4 kHz 460 V 3 phase 22 kW / 30 hp, 48 A at 4 kHz 380 V 3 phase 22 kW / 30 hp
  • Max transition current: 72 A for 60 s 3 phases 22 kW / 30 hp, 79.2 A for 2 s 3 phases 22 kW / 30 hp
• Label Info:
  • 1, Altivar 71, ATV71HD22N4, 22KW - 30HP, V6.1 IE74
  • Input: Alimentation, Output: Sortie, Entrada, Salida, U(V~): 380...480 3, 0...380-480 3, KW, F(Hz): 50/60, 0...599, (A): 50 max, 48, U(V-): 460...480 3, 0...460 3, HP, F(Hz): 60, 0...599, I(A): 42, FLA 40, Short Circuit Withstand 5000 A, 480V, when protected by fuse, UL Class J 80A max
  • Motor Overload Protection - Class 10: Proteccion Sobrecarga Motor - Clase 10, Protection Surcharge Moteur - Classe 10, Cu AWG 6: 75°C, 212lb.in/ 24N.m, II (2) GD, CE, 0080, INERIS 07ATEX0004X, UL LISTED 170M, IND.CONT.EQ., E116875, +, 224330, B44.1/ASME-A17.5, ρο, ME79, K, KCC-REI-Sok, ATV71HD22N4, N998, 6W1410000096, Designed by Schneider Electric in France, Tested and Verified by Schneider Electric in France, Made in China, Telemecanique
• Label Info:
  • 2, VW3A1101: Vision Test: V02, Auto Test: A02, AN1348004582, W8137861 43432424, OPU: VZ, 51121 D8 Flash V1 1Ie 33, 01348

```html

ATV71HD22N4 + VW3A1101 Schneider Electric

This industrial item from Schneider Electric is ideal for applications such as automation, packaging, conveyors, HVAC, and more. Available for purchase at PLC2Day.

For more items from Schneider Electric in stock, visit Schneider Electric.
