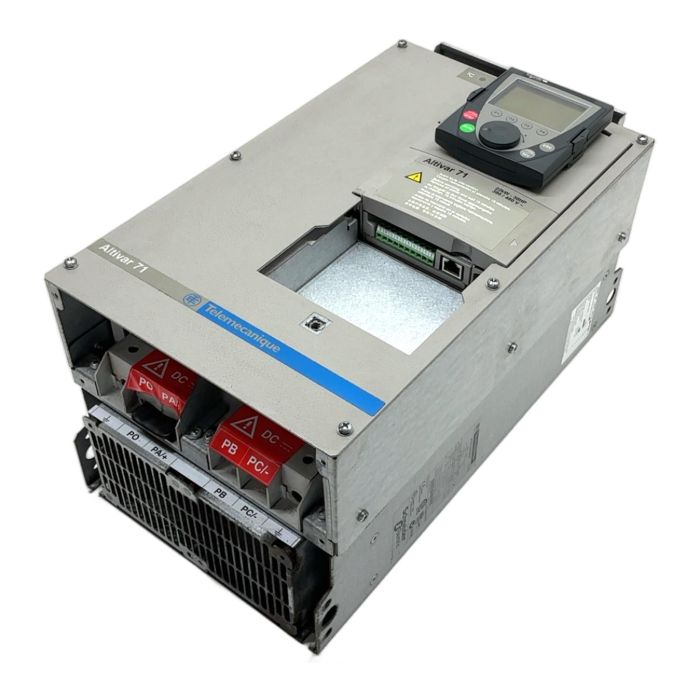

Schneider Electric Altivar 71 Frequency Inverter

Description

The ATV71HD22N4 is a high-performance variable speed drive from Schneider Electric's renowned Altivar 71 series. Designed for complex, high-torque machines, this 22 kW / 30 HP drive offers advanced control and reliability. It is an ideal spare part for maintaining existing systems that rely on the proven Altivar 71 platform. This unit includes the graphic display terminal for straightforward configuration and diagnostics.

Specifications

• Manufacturer: Schneider Electric
• Series: Altivar 71
• Model: ATV71HD22N4
• Power Rating: 22 kW (30 HP)
• Input Voltage: 380-480V AC, 3-Phase
• Input Frequency: 50/60 Hz
• Output Current: 48 A
• Communication: Integrated Modbus and CANopen
• Enclosure Rating: IP20

Label Info

• Type: ATV71HD22N4
• Version: V2.5 IE29
• Serial Number: 6W0826900177

Application

This drive is suitable for a wide range of industrial applications requiring precise speed and torque control, including material handling, process machinery, hoisting equipment, and industrial fans.

Country of Origin

Made in France.

CO2 Impact

Reusing this drive saves an estimated 760 kg of CO2, contributing to a more sustainable industrial environment compared to manufacturing a new unit.

Availability

This is an obsolete item, available as a refurbished spare part. Stock is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

The ATV900 series offers significantly improved energy efficiency, built-in Ethernet connectivity, and advanced features for process optimization and monitoring that are not standard in the older ATV71 series.

Yes, the Altivar 71 series is specifically designed for heavy-duty, constant torque applications. It provides high torque at low speeds, making it ideal for demanding machinery.

The base ATV71HD22N4 drive has integrated Modbus and CANopen communication protocols. Additional protocols like Ethernet/IP, Profibus DP, and DeviceNet can be added via optional communication cards.
