Schneider Electric Altivar 71 VFD

Description

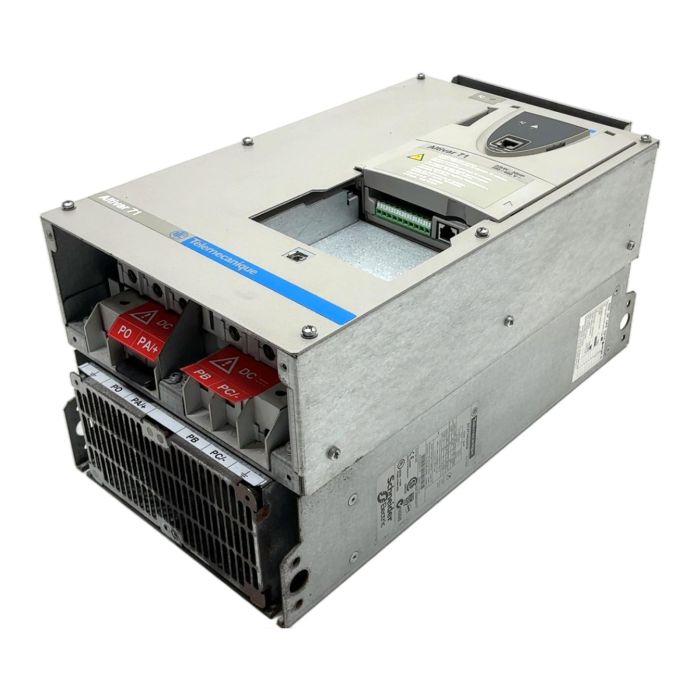

The ATV71HD22N4 is a high-performance variable frequency drive from Schneider Electric's renowned Altivar 71 series. Designed for constant torque applications, it provides advanced control for 3-phase asynchronous and synchronous motors. With a power rating of 22 kW (30 HP) and a supply voltage of 380-480V, this drive is a powerful solution for industrial machinery, including conveyors, mixers, and pumps.

Specifications

• Manufacturer: Schneider Electric
• Series: Altivar 71
• Model: ATV71HD22N4
• Power Rating: 22 kW / 30 HP
• Input Voltage: 380-480V AC, 3-Phase
• Input Frequency: 50/60 Hz
• Output Current: 48A
• Integrated Communication: Modbus, CANopen
• EMC Filter: Integrated

Label Info

• Type: ATV71HD22N4
• Version: V2.5 IE29
• Serial Number: 6W0826900176

Application

This drive is ideal for applications requiring high performance and dynamic control, such as material handling, hoisting, process machinery, and packaging equipment. Its robust design ensures reliability in demanding industrial environments.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned unit, you help avoid the emission of approximately 680 kg of CO2 required for the production of a new one. This is a significant contribution to environmental sustainability.

Availability

This is an obsolete item but available from our stock as a reliable spare part. Order now from PLC2Day for expert support and fast delivery.

FAQ

The ATV71 series was a significant upgrade over previous models like the ATV58. While not always a drop-in replacement due to size and parameter differences, it can often replace older units with some re-engineering. Always consult the migration manual.

The standard ATV71HD22N4 comes with integrated Modbus and CANopen ports. Additional communication cards can be installed for protocols like Ethernet/IP, Modbus TCP, Profibus DP, and DeviceNet.

While the drive is capable of up to 1600 Hz for special high-speed motor applications, the standard factory setting limits it to 60 Hz. The maximum frequency is a configurable parameter that should only be adjusted by a qualified technician for suitable applications.
