Description: ATV71HD22N4: Altivar 71 - Frequency inverter - 22kW - 480V - EMC filter - Display - IP54, IEAN: 3389118069503, Exclude: Graphic Display, Photo. , Product Info: range of product, Altivar 71, product or component type, Speed ​​controller, product specific application, Complex high-power machines, component name, ATV71, engine power kW, 22 kW, 3 phases at 380...480 V, engine power hp, 30 hp, 3 phases at 380...480 V, Maximum motor cable length, 100 m shielded cable, 200 m unshielded cable, power supply voltage, 380...480 V - 15...10 %, number of phases in network, 3 phases, mains power, 42 A for 480 V 3 phases 22 kW / 30 hp, 50 A for 380 V 3 phases 22 kW / 30 hp, EMC filter, Integrated, mounting style, With cooling plate, apparent power, 32.9 kVA at 380 V 3 phases 22 kW / 30 hp, ideal line Isc, 22 kA for 3 phases, nominal output current, 40 A at 4 kHz 460 V 3 phase 22 kW / 30 hp, 48 A at 4 kHz 380 V 3 phase 22 kW / 30 hp, max transition current, 72 A for 60 s 3 phases 22 kW / 30 hp, 79.2 A for 2 s 3 phases 22 kW / 30 hp, label Info: 1, Altivar 71, ATV71HD22N4, 22KW - 30HP, V6.1 IE74, Input, Alimentation, Output, Sortie, Entrada, Salida, U(V~), 380...480 3, 0...380-480 3, KW, F(Hz), 50/60, 0...599, (A), 50 max, 48, U(V-), 460...480 3, 0...460 3, HP, F(Hz), 60, 0...599, I(A), 42, FLA 40, Short Circuit Withstand 5000 A, 480V, when protected by fuse, UL Class J 80A max, Motor Overload Protection - Class 10, Proteccion Sobrecarga Motor - Clase 10, Protection Surcharge Moteur - Classe 10, Cu AWG 6: 75°C, 212lb.in/ 24N.m, II (2) GD, CE, 0080, INERIS 07ATEX0004X, UL LISTED 170M, IND.CONT.EQ., E116875, +, 224330, B44.1/ASME-A17.5, ρο, ME79, K, KCC-REI-Sok, ATV71HD22N4, N998, 6W1410000096, Designed by Schneider Electric in France, Tested and Verified by Schneider Electric in France, Made in China, Telemecanique

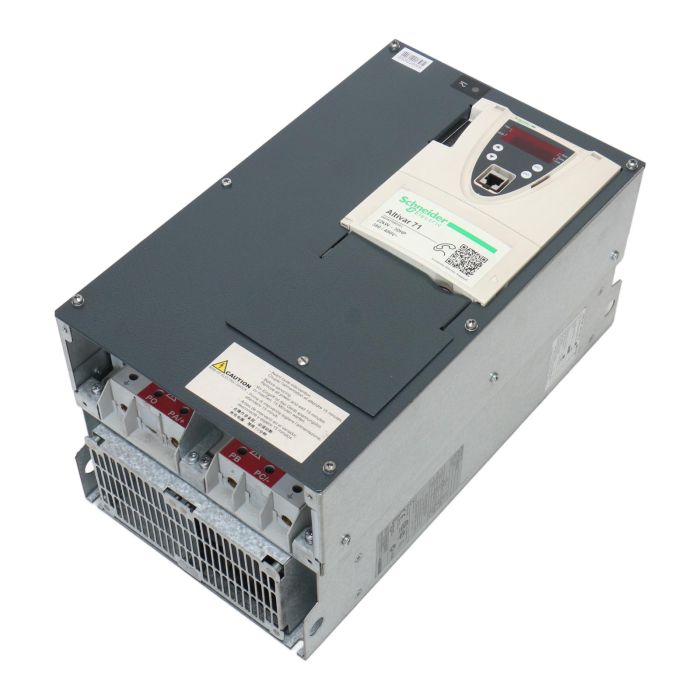

• Description: ATV71HD22N4: Altivar 71 - Frequency inverter - 22kW - 480V - EMC filter - Display - IP54
• IEAN: 3389118069503
• Product Info:
  • Range of product: Altivar 71
  • Product or component type: Speed controller
  • Product specific application: Complex high-power machines
  • Component name: ATV71
  • Engine power kW: 22 kW, 3 phases at 380...480 V
  • Engine power hp: 30 hp, 3 phases at 380...480 V
  • Maximum motor cable length: 100 m shielded cable, 200 m unshielded cable
  • Power supply voltage: 380...480 V - 15...10 %
  • Number of phases in network: 3 phases
  • Mains power: 42 A for 480 V 3 phases 22 kW / 30 hp, 50 A for 380 V 3 phases 22 kW / 30 hp
  • EMC filter: Integrated
  • Mounting style: With cooling plate
  • Apparent power: 32.9 kVA at 380 V 3 phases 22 kW / 30 hp
  • Ideal line Isc: 22 kA for 3 phases
  • Nominal output current: 40 A at 4 kHz 460 V 3 phase 22 kW / 30 hp, 48 A at 4 kHz 380 V 3 phase 22 kW / 30 hp
  • Max transition current: 72 A for 60 s 3 phases 22 kW / 30 hp, 79.2 A for 2 s 3 phases 22 kW / 30 hp
• Label Info:
  • 1, Altivar 71, ATV71HD22N4, 22KW - 30HP, V6.1 IE74
  • Input: Alimentation, Output: Sortie, Entrada: Salida
  • U(V~): 380...480 3, 0...380-480 3, KW, F(Hz): 50/60, 0...599, (A): 50 max, 48
  • U(V-): 460...480 3, 0...460 3, HP, F(Hz): 60, 0...599, I(A): 42, FLA 40
  • Short Circuit Withstand 5000 A, 480V, when protected by fuse, UL Class J 80A max
  • Motor Overload Protection - Class 10, Proteccion Sobrecarga Motor - Clase 10
  • Cu AWG 6: 75°C, 212lb.in/ 24N.m, II (2) GD, CE, 0080, INERIS 07ATEX0004X
  • UL LISTED 170M, IND.CONT.EQ., E116875, +, 224330, B44.1/ASME-A17.5, ρο, ME79, K, KCC-REI-Sok
  • ATV71HD22N4, N998, 6W1410000096, Designed by Schneider Electric in France
  • Tested and Verified by Schneider Electric in France, Made in China, Telemecanique

ATV71HD22N4 Schneider Electric

Explore the versatile ATV71HD22N4 variable speed drive from Schneider Electric. Ideal for industrial applications such as automation, packaging, conveyors, HVAC, and more. Purchase this item at PLC2Day.
