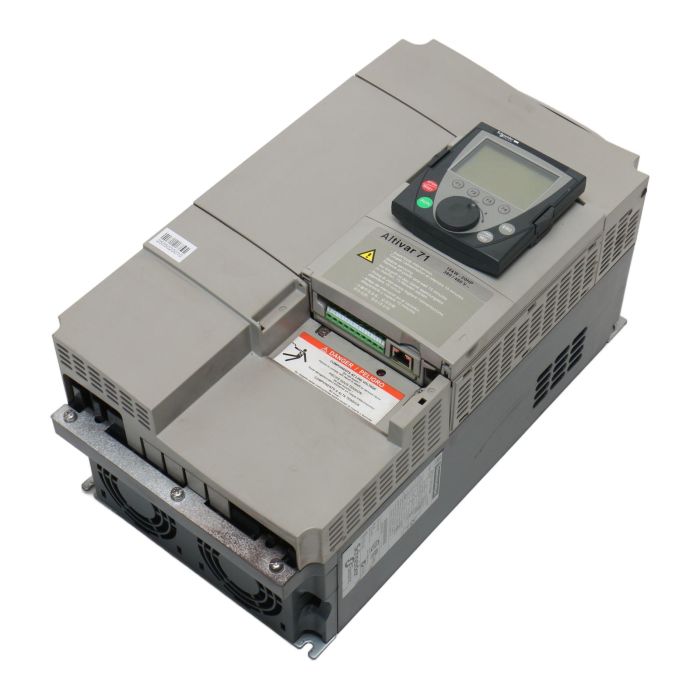

• Description: ATV71HD15N4, Altivar 71 - Frequency inverter - 15kW - 480V - EMC filter
• Display: VW3A1101, 15kW - 20HP, 3389118064652 + 3389118069305, NOTE: Small front cover is missing. (Photo)
• Product Info: Altivar 71
• Product or component type: Speed controller
• Product specific application: Complex high-power machines
• Component name: ATV71
• Engine power kW: 15 kW, 3 phases at 380...480 V
• Engine power hp: 20 hp, 3 phases at 380...480 V
• Maximum motor cable length: 50 m shielded cable, 100 m unshielded cable
• Power supply voltage: 380...480 V - 15...10 %
• Number of phases in network: 3 phases
• Mains power: 39 A for 480 V 3 phases 15 kW / 20 hp, 48 A for 380 V 3 phases 15 kW / 20 hp
• EMC filter: Integrated
• Mounting style: With cooling plate
• Apparent power: 31.6 kVA at 380 V 3 phases 15 kW / 20 hp
• Ideal line Isc: 22 kA for 3 phases
• Nominal output current: 27 A at 4 kHz 460 V 3 phase 15 kW / 20 hp, 33 A at 4 kHz 380 V 3 phase 15 kW / 20 hp
• Max transition current: 49.5 A for 60 s 3 phases 15 kW / 20 hp, 54.5 A for 2 s 3 phases 15 kW / 20 hp
• Label Info 1: Telemecanique, ATV71HD15N4, 15kW - 20HP, Input, Alimentation, Entrada, V1.2 IE18, Output, Sortie, Salida, U (V-), 380...480 3, 0...380-480, KW, F (Hz), 50/60, 0...1600, I(A), 48, 33, U (V~), 460...480 3, 0...460, F (Hz), 60, 0...1600, I(A), 39, FLA 33, =, UL Class J 70A max, HP Suitable for use on a circuit capable of, delivering not more than 5000 rms, symmetrical Amperes, 480 V maximum, Motor Protective Device - Class 10, Proteccion de motor - Clase 10, Protection Moteur - Classe 10, Cu AWG 6, 75°C, 26.5 lb.in, 3 N.m, Ex II (2) GD, CE, 0080, INERIS 07ATEX0004X, UL LISTED 170M, POW.CONV.EQ., China, SA NOM, 224330, 117, B44.1/ASME-A17.5, FRANCE, ☑ N998, Schneider, Electric
• Label Info 2: V, A, VW3A1101, 6W1245205488 $1898992 A00, CPU: V2.51E21 FLASH: V1.1IE32 G1245, QC, PASS
