Description: ATV71HD15N4, Altivar 71 - Frequency inverter - 15kW - 480V - EMC filter - Display: VW3A1101, 15kW - 20HP, 3389118064652 + 3389118069305., Product Info: Altivar 71, product or component type, Speed ​​controller, product specific application, Complex high-power machines, component name, ATV71, engine power kW, 15 kW, 3 phases at 380...480 V, engine power hp, 20 hp, 3 phases at 380...480 V, Maximum motor cable length, 50 m shielded cable, 100 m unshielded cable, power supply voltage, 380...480 V - 15...10 %, number of phases in network, 3 phases, mains power, 39 A for 480 V 3 phases 15 kW / 20 hp, 48 A for 380 V 3 phases 15 kW / 20 hp, EMC filter, Integrated, mounting style, With cooling plate, apparent power, 31.6 kVA at 380 V 3 phases 15 kW / 20 hp, ideal line Isc, 22 kA for 3 phases, nominal output current, 27 A at 4 kHz 460 V 3 phase 15 kW / 20 hp, 33 A at 4 kHz 380 V 3 phase 15 kW / 20 hp, max transition current, 49.5 A for 60 s 3 phases 15 kW / 20 hp, 54.5 A for 2 s 3 phases 15 kW / 20 hp, label Info: 1, Telemecanique, ATV71HD15N4, 15kW - 20HP, Input, Alimentation, Entrada, V1.2 IE18, Output, Sortie, Salida, U (V-), 380...480 3, 0...380-480, KW, F (Hz), 50/60, 0...1600, I(A), 48, 33, U (V~), 460...480 3, 0...460, F (Hz), 60, 0...1600, I(A), 39, FLA 33, =, UL Class J 70A max, HP Suitable for use on a circuit capable of, delivering not more than 5000 rms, symetrical Ampers, 480 V maximum, Motor Protective Device - Class 10, Proteccion de motor - Clase 10, Protection Moteur - Classe 10, Cu AWG 6, 75°C, 26.5 lb.in, 3 N.m, Ex II (2) GD, CE, 0080, INERIS 07ATEX0004X, UL LISTED 170M, POW.CONV.EQ., China, SA NOM, 224330, 117, B44.1/ASME-A17.5, FRANCE, ☑ N998, Schneider, Electric, label Info: 2, V, A, VW3A1101, 6W1245205488 $1898992 A00, CPU: V2.51E21 FLASH: V1.1IE32 G1245, QC, PASS

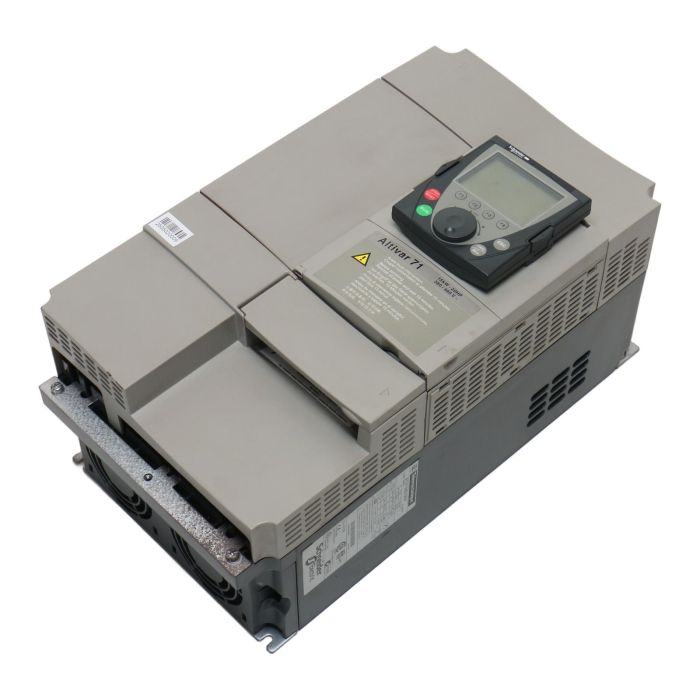

• Description: ATV71HD15N4, Altivar 71 - Frequency inverter - 15kW - 480V - EMC filter
• Display: VW3A1101, 15kW - 20HP, 3389118064652 + 3389118069305
• Product Info:
  • Altivar 71
  • Product or component type: Speed controller
  • Product specific application: Complex high-power machines
  • Component name: ATV71
  • Engine power kW: 15 kW, 3 phases at 380...480 V
  • Engine power hp: 20 hp, 3 phases at 380...480 V
  • Maximum motor cable length: 50 m shielded cable, 100 m unshielded cable
  • Power supply voltage: 380...480 V - 15...10 %
  • Number of phases in network: 3 phases
  • Mains power: 39 A for 480 V 3 phases 15 kW / 20 hp, 48 A for 380 V 3 phases 15 kW / 20 hp
  • EMC filter: Integrated
  • Mounting style: With cooling plate
  • Apparent power: 31.6 kVA at 380 V 3 phases 15 kW / 20 hp
  • Ideal line Isc: 22 kA for 3 phases
  • Nominal output current: 27 A at 4 kHz 460 V 3 phase 15 kW / 20 hp, 33 A at 4 kHz 380 V 3 phase 15 kW / 20 hp
  • Max transition current: 49.5 A for 60 s 3 phases 15 kW / 20 hp, 54.5 A for 2 s 3 phases 15 kW / 20 hp
• Label Info 1:
  • Telemecanique, ATV71HD15N4, 15kW - 20HP
  • Input: Alimentation, Entrada, V1.2 IE18
  • Output: Sortie, Salida, U (V-), 380...480 3, 0...380-480, KW, F (Hz), 50/60, 0...1600, I(A), 48, 33, U (V~), 460...480 3, 0...460, F (Hz), 60, 0...1600, I(A), 39, FLA 33
  • UL Class J 70A max, HP Suitable for use on a circuit capable of delivering not more than 5000 rms, symetrical Ampers, 480 V maximum, Motor Protective Device - Class 10, Proteccion de motor - Clase 10, Protection Moteur - Classe 10, Cu AWG 6, 75°C, 26.5 lb.in, 3 N.m, Ex II (2) GD, CE, 0080, INERIS 07ATEX0004X, UL LISTED 170M, POW.CONV.EQ., China, SA NOM, 224330, 117, B44.1/ASME-A17.5, FRANCE, ☑ N998, Schneider, Electric
• Label Info 2:
  • V, A, VW3A1101, 6W1245205488 $1898992 A00, CPU: V2.51E21 FLASH: V1.1IE32 G1245, QC, PASS

```html

ATV71HD15N4 + VW3A1101 by Schneider Electric

Buy this product for industrial automation applications such as conveyors, HVAC systems, and packaging machinery. Available at PLC2Day.

Schneider Electric offers more items currently in stock at PLC2Day.
