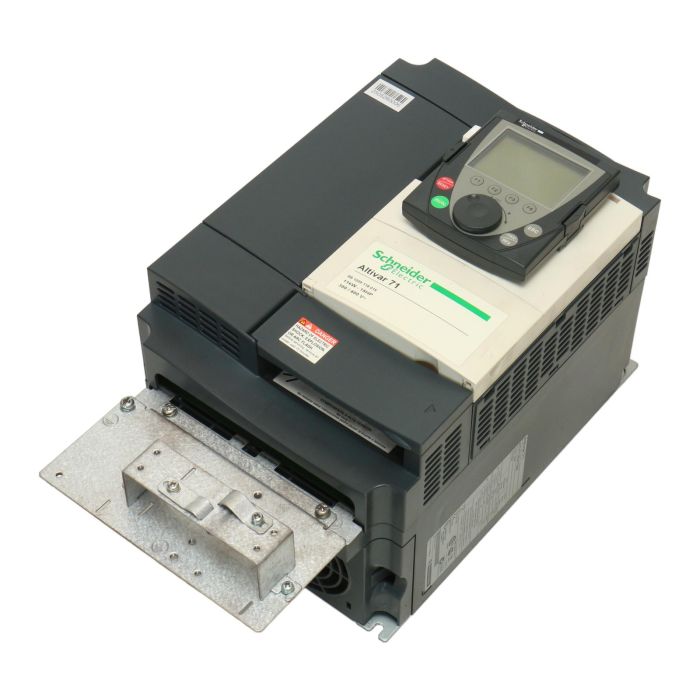

Altivar 71 - Frequency Inverter - 11kW - 480V - EMC Filter - Display - IP54

Product Description

Altivar 71 - Frequency inverter - 11kW - ​​480V - EMC filter - Display - IP54 is a speed controller designed for complex high-power machines. It offers reliable speed control and efficient performance.

Product Specifications

Range of Product: Altivar 71
Product Type: Speed Controller
Application: Complex high-power machines
Component Name: ATV71
Engine Power: 11kW (15HP) at 3 phases 380-480V
Maximum Motor Cable Length: 50m shielded cable, 100m unshielded cable
Power Supply Voltage: 380-480V
Number of Phases in Network: 3 phases
Mains Power: 30A for 480V 3 phases 11kW / 15HP, 36.6A for 380V 3 phases 11kW / 15HP
EMC Filter: Integrated
Mounting Style: With cooling plate
Apparent Power: 24.1kVA at 380V 3 phases 11kW / 15HP
Ideal Line Isc: 22kA for 3 phases
Nominal Output Current: 21A at 4 kHz 460V 3 phase 11kW / 15HP, 27.7A at 4 kHz 380V 3 phase 11kW / 15HP
Max Transition Current: 41.6A for 60s 3 phases 11kW / 15HP, 45.7A for 2s 3 phases 11kW / 15HP

Product Label Info

Model Code / Product Markings: ATV71HD11N4

EAN (GTIN-13): 3389118064645

Input: 380-480V 3 phases, Output: 0-380-480V 3 phases, kW: 11kW, F (Hz): 50/60, A: 36.6 Max, 27.7
Output: 460-480V 3 phases, 0-460 @3, HP, F (Hz): 60, A: 30, FLA: 21
Short Circuit Withstand: 5000A, 480V when protected by fuse
UL Class J: 60A max, Motor Overload Protection - Class 10
Cu AWG 8: 75°C, ExII (2) GD, CE0080, INERIS 07ATEX0004X, UL LISTED 170M, IND.CONT.EQ., E116875, B44.1/ASME-A17.5, SP, ®, PG, K, ME79, 224330, KCC-REI-SEK, ATV71HD11N4, N998, 8B1209118015, Made in Indonesia, Telemecanique

Application

This speed controller is suitable for use in complex high-power machines for precise control and efficient operation.

What are the key advantages of Altivar 71 - Frequency Inverter - 11kW - 480V - EMC Filter - Display - IP54?

The Altivar 71 offers reliable speed control, integrated EMC filtering, and a user-friendly display for easy operation.

Country of Origin

This product is manufactured in Indonesia.

Method of Application

Install the Altivar 71 speed controller with proper cooling and electrical connection for optimal performance.

Safety Instructions

Ensure proper grounding and follow manufacturer guidelines for safe installation and operation of the speed controller.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Schneider Electric
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the Altivar 71 - Frequency Inverter - 11kW - 480V - EMC Filter - Display - IP54 used for?

This speed controller is typically used in complex high-power machines for precise speed control and reliable performance.

Is ATV71HD11N4 compatible with my system?

If your system requires a speed controller with 11kW power and 3-phase 380-480V support, then the Altivar 71 model will likely be compatible. Contact us for verification.

Alternatives to Altivar 71 - Frequency Inverter - 11kW - 480V - EMC Filter - Display - IP54

If you're looking for a similar speed controller, consider other models from Schneider Electric. These offer comparable performance and reliability.

Can I sell my surplus stock to PLC2DAY?

Yes, PLC2DAY accepts surplus stock and collaborates with companies for surplus recovery and resale. Contact us for more information and assistance.

Need Help?

Call us at +31(0)165 20 11 80 or get in touch online.
