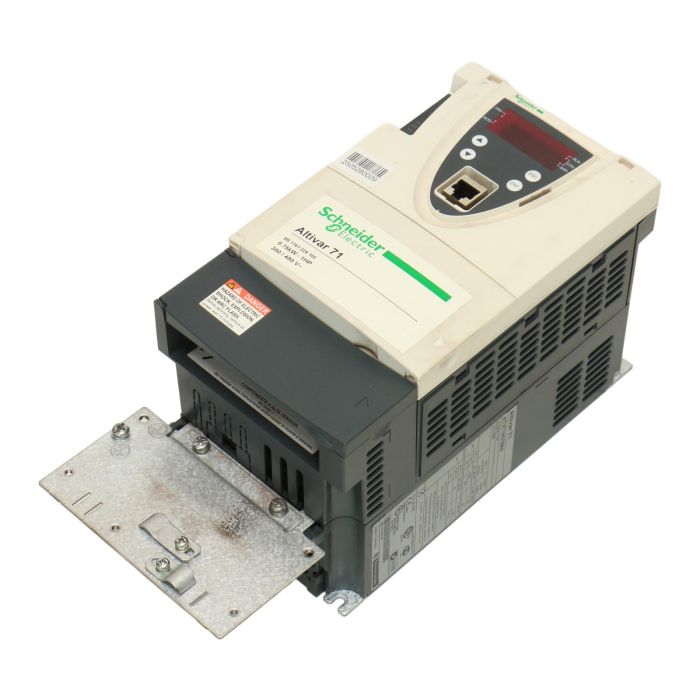

ATV71H075N4

Product Description

Variable speed drive ATV71 - 0.75kW-1HP - 480V - EMC filter-graphic terminal

Product Specifications

Range of Product: Altivar 71

Product or Component Type: Variable speed drive

Product Specific Application: Complex, high-power machines

Motor power: 0.75 kW, 3 phase 380...480 V

Maximum Horse Power Rating: 1 hp, 3 phase 380...480 V

Maximum motor cable length: 164.04 ft (50 m) shielded cable, 328.08 ft (100 m) unshielded cable

Power supply voltage: 380...480 V - 15...10 %

Phase: 3 phase

Line current: 3 A 480 V 3 phase 0.75 kW / 1 hp, 3.7 A 380 V 3 phase 0.75 kW / 1 hp

EMC filter: Integrated

Assembly style: With heat sink

Apparent power: 2.4 kVA 380 V 3 phase 0.75 kW / 1 hp

Prospective line Isc: 5 kA 3 phase

Nominal output current: 2.1 A 4 kHz 460 V 3 phase 0.75 kW / 1 hp, 2.3 A 4 kHz 380 V 3 phase 0.75 kW / 1 hp

Maximum transient current: 3.5 A 60 s 3 phase 0.75 kW / 1 hp, 3.8 A 2 s 3 phase 0.75 kW / 1 hp

Product Label Info

Model Code / Product Markings: ATV71H075N4

EAN (GTIN-13): 3389118064522

Application

Complex, high-power machines

What are the key advantages of ATV71H075N4?

Energy efficiency, high power handling capacity, integrated EMC filter

Country of Origin

This product is manufactured in Indonesia

Method of Application

Installation with appropriate heat sink and cable management

Safety Instructions

Follow manufacturer guidelines for proper installation and usage

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Schneider Electric
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the ATV71H075N4 used for?

This part is typically used in high-power industrial machines. It provides variable speed control and motor protection.

Is ATV71H075N4 compatible with my system?

If you're using Schneider Electric control systems, especially for high-power applications, then this model will likely be compatible. Contact us to verify.

Alternatives to ATV71H075N4

If you're looking for a similar part, consider other models in the Altivar 71 range. These offer comparable performance and features.

Can I sell my surplus stock to PLC2DAY?

Yes, PLC2DAY accepts surplus stock for resale. Contact us with details of your surplus inventory for further assistance.
