ATV61HD90N4D

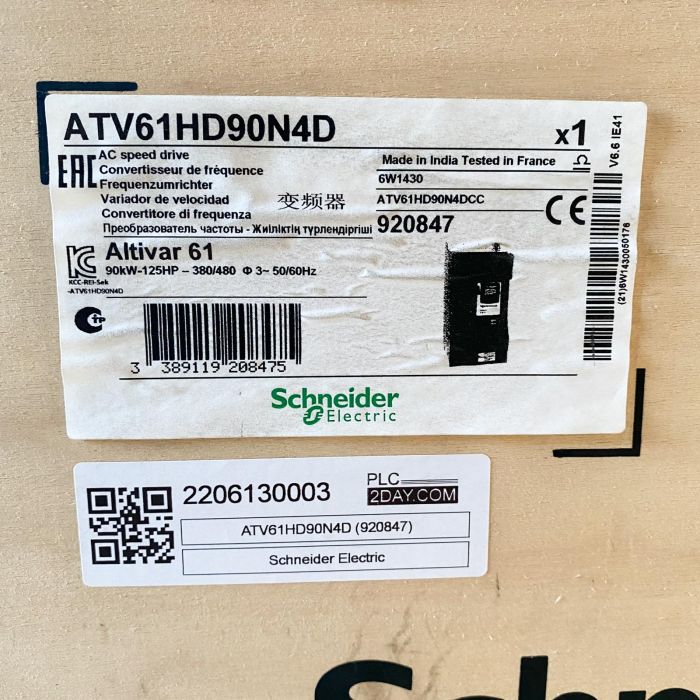

Altivar 61 / AC Speed Drive: 90 kW-125HP, 380/480, Sphase: 50/60Hz, Serialno: 3-389119-208475, (6W1430), (ATV61HD90N4DCC), Made in India tested in France

Schneider Electric ATV61HD90N4D – Altivar 61 Variable Speed Drive (90 kW / 125 HP, 460 V, No DC Choke)

The ATV61HD90N4D is a high-performance variable speed drive from Schneider Electric’s Altivar 61 series, designed to optimize energy efficiency and enhance control in HVAC and industrial pump/fan applications. With a power rating of 90 kW (125 HP) and a voltage range of 380–480 V, this drive is ideal for demanding environments requiring precise motor control and energy savings.

Key Features

Range of product: Altivar 61
Product or component type: Variable speed drive
Product specific application: Pumping and ventilation machine
Component name: ATV61
Motor power kW: 90 kW, 3 phases at 380...480 V
Motor power hp: 125 hp, 3 phases at 380...480 V
power supply voltage: 380...480 V - 15...10 %
supply number of phases: 3 phases
Line current: 143 A for 480 V 3 phases 90 kW / 125 hp // 166 A for 380 V 3 phases 90 kW / 125 hp
EMC filter: Level 3 EMC filter
Variant: Without DC choke
Assembly style: With heat sink
Apparent power: 109.3 kVA at 380 V 3 phases 90 kW / 125 hp
maximum prospective line Isc: 35 kA for 3 phases
Maximum transient current: 214.8 A for 60 s, 3 phases
Nominal switching frequency: 4 kHz
Switching frequency: 2...8 kHz adjustable // 4...8 kHz with derating factor

Applications

The ATV61HD90N4D is engineered for applications that demand reliable and efficient motor control, including:

* HVAC systems (fans, pumps, compressors)
* Water and wastewater treatment facilities
* Industrial ventilation and air handling units
* Energy management systems
* Process control in manufacturing environments

Benefits

* Energy Efficiency: Optimizes motor performance to reduce energy consumption.
* Enhanced Control: Provides precise speed and torque control for various applications.
* User-Friendly Interface: Equipped with a graphical display for easy configuration and monitoring.
* Flexible Integration: Compatible with various communication protocols for seamless system integration.
* Robust Design: Built to withstand industrial environments with a durable construction.

Official Product Information

For detailed specifications and documentation, please visit the official Schneider Electric product page:

https://www.se.com/us/en/product/ATV61HD90N4D/speed-drive-125hp460vno-dc-choke/

---

*Note: The ATV61HD90N4D model does not include a DC choke. If your application requires a DC choke for harmonic mitigation or other purposes, consider selecting a variant that includes this feature.
