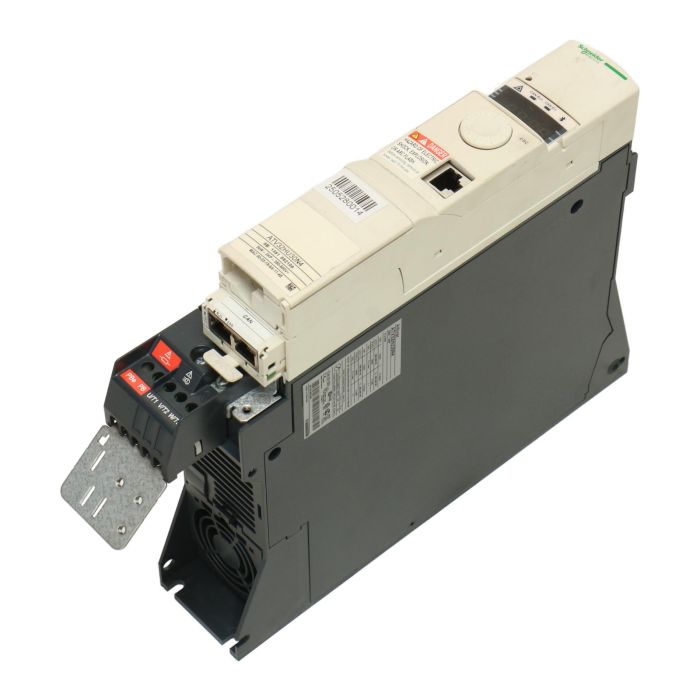

Variable Speed Drive ATV32 - 3 kW - 400 V - 3 phase - with Heat Sink

Product Description

Variable speed drive ATV32 - 3 kW - 400 V - 3 phase - with heat sink for complex machines.

Product Specifications

Range of Product: Altivar 32
Product or Component Type: Variable speed drive
Product destination: Asynchronous motors, Synchronous motors
Product Specific Application: Complex machines
Function Available: -
Assembly style: With heat sink
Component name: ATV32
EMC filter: Class C2 EMC filter integrated
Phase: 3 phase
[Us] rated supply voltage: 380...500 V - 15...10%
Supply voltage limits: 323…550 V
Supply frequency: 50...60 Hz - 5...5%
Network Frequency: 47.5...63 Hz
Motor power kW: 3 kW 380...480 V
Line current: 11.1 A 380 V 3 phase 3 kW, 8.4 A 500 V 3 phase 3 kW
Apparent power: 7.3 kVA 500 V 3 phase 3 kW

Product Label Info

Model Code / Product Markings: ATV32HU30N4

Altivar, ATV32HU30N4, 3kW-3HP, V1.5 IE08, kW, Input, Output, U(V~), 380-500 3, 0...380-500 3, F(Hz), 50/60, 0..599, I(A), 11.1 max, 7.1, HP, Input, Output, U(V~), 380-500 3, 0...380-500 3, F(Hz), 50/60, 0..599, I(A), 7.1, 11.1 max, SCCR: for rating and protection refer to User Manual, Motor Overload Protection - class 10, Input Cu AWG14: 75°C, N.m, 0.6, lb.in, 6.3, Output cu AWG14: 75°C 0.7 to 0.8 6.2 to 7.1, II (2) GD, 0000, INERIS 10ATEX0015X, Սլ, ☑ N998, ส, UL LISTED 170M, IND.CONT.EQ. 224330, E116875, PCK, ME79 KCC-REI-SEK, ATV32HU30N4, 8B1351892108, Made in Indonesia, Telemecanique

EAN (GTIN-13): 3606480299872

Application

Ideal for use in complex machines requiring precise motor control.

What are the key advantages of Variable Speed Drive ATV32 - 3 kW - 400 V - 3 phase - with Heat Sink?

Ensures efficient variable speed control and enhances the performance of machines.

Country of Origin

This product is manufactured in Indonesia.

Method of Application

Follow manufacturer guidelines for installation and integration into your system.

Safety Instructions

Handle with care and follow all safety precautions provided in the user manual.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Schneider Electric
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the Variable Speed Drive ATV32 - 3 kW - 400 V - 3 phase - with Heat Sink used for?

This part is typically used in complex machines, such as industrial automation systems. It provides precise control over motor speed.

Is ATV32HU30N4 compatible with my system?

If you're using Schneider Electric control systems, especially those compatible with the Altivar 32 series, then this model will likely be compatible. Contact us to verify.

Alternatives to ATV32HU30N4

If you're looking for a similar part, consider other models within the Altivar 32 range. These offer comparable performance and reliability.

Can I sell my surplus stock to PLC2DAY?

Yes, PLC2DAY accepts surplus stock for resale. Contact us with details of your surplus inventory for further assistance.
