Description: Variable speed drive ATV32 - 3 kw - 400 V - 3 phase - with heat sink, ATV32HU30N4, 3606480299872, * Product Info, ATV32HU30N4 : Main, Range of Product, Altivar 32, Product or Component Type, Variable speed drive, Product destination, Asynchronous motors, Synchronous motors, Product Specific Application, Complex machines, Function Available, -, Assembly style, With heat sink, Component name, ATV32, EMC filter, Class C2 EMC filter integrated, Phase, 3 phase, [Us] rated supply voltage, 380...500 V - 15...10 %, Supply voltage limits, 323…550 V, Supply frequency, 50...60 Hz - 5...5 %, Network Frequency, 47.5...63 Hz, Motor power kW, 3 kW 380...480 V, Complementary, Line current, 11.1 A 380 V 3 phase 3 kW, 8.4 A 500 V 3 phase 3 kW, Apparent power, 7.3 kVA 500 V 3 phase 3 kW, label Info: Altivar, ATV32HU30N4, 3kW - 3HP, V2.3 IE17, kW, Input, Output, U(V~), 380-500 3, 0...380-480 3, F(Hz), 50/60, 0..599, I(A), 11.1 max, 7.1, HP, Input, Output, U(V~), 380-500 3, 0...380-480 3, F(Hz), 50/60, 0..599, I(A), 11.1 max, 7.1, SCCR : for rating and protection refer to User Manual, Motor Overload Protection - class 10, Input Cu AWG14: 75°C, N.m, 0.6, lb.in, 5.3, Output, Cu AWG14: 75°C, 0.7 to 0.8 6.2 to 7.1, II (2) GD, ☑ N998, 20, CE., 0000, INERIS 10ATEXD015X, UL LISTED 170M, IND.CONT.EQ., E116875, SP, 224339, EAC, KCC-RELSEK, ATV32HU30N4, K, 8B1630260204, Made in Indonesia, Sa, Telemecanique

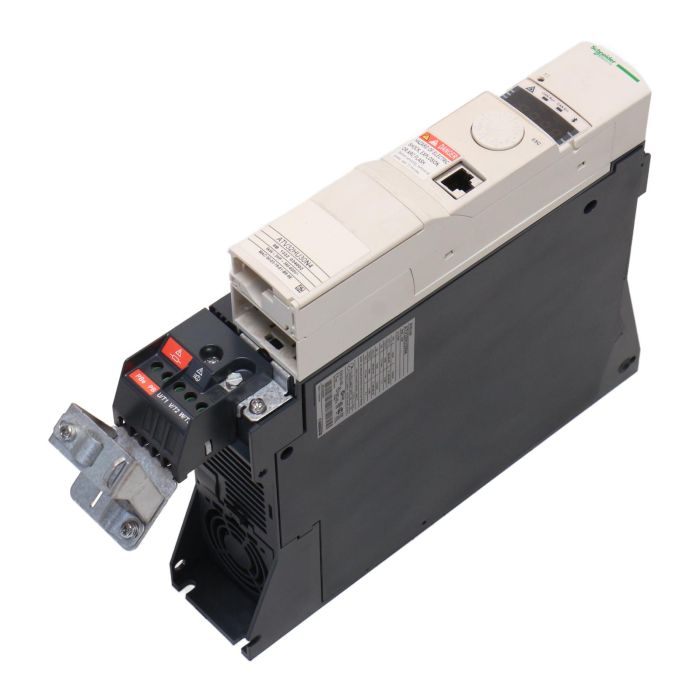

• Description: Variable speed drive ATV32 - 3 kw - 400 V - 3 phase - with heat sink, ATV32HU30N4, 3606480299872
• Product Info, ATV32HU30N4 : Main
• Range of Product: Altivar 32
• Product or Component Type: Variable speed drive
• Product destination: Asynchronous motors, Synchronous motors
• Product Specific Application: Complex machines
• Function Available: -
• Assembly style: With heat sink
• Component name: ATV32
• EMC filter: Class C2 EMC filter integrated
• Phase: 3 phase
• [Us] rated supply voltage: 380...500 V - 15...10 %
• Supply voltage limits: 323…550 V
• Supply frequency: 50...60 Hz - 5...5 %
• Network Frequency: 47.5...63 Hz
• Motor power kW: 3 kW 380...480 V
• Complementary
• Line current: 11.1 A 380 V 3 phase 3 kW, 8.4 A 500 V 3 phase 3 kW
• Apparent power: 7.3 kVA 500 V 3 phase 3 kW
• label Info: Altivar, ATV32HU30N4, 3kW - 3HP, V2.3 IE17
• kW, Input, Output, U(V~), 380-500 3, 0...380-480 3, F(Hz), 50/60, 0..599, I(A), 11.1 max, 7.1
• HP, Input, Output, U(V~), 380-500 3, 0...380-480 3, F(Hz), 50/60, 0..599, I(A), 11.1 max, 7.1
• SCCR: for rating and protection refer to User Manual
• Motor Overload Protection - class 10
• Input Cu AWG14: 75°C, N.m, 0.6, lb.in, 5.3
• Output, Cu AWG14: 75°C, 0.7 to 0.8 6.2 to 7.1
• II (2) GD, ☑ N998, 20, CE., 0000, INERIS 10ATEXD015X
• UL LISTED 170M, IND.CONT.EQ., E116875, SP, 224339, EAC, KCC-RELSEK, ATV32HU30N4, K, 8B1630260204
• Made in Indonesia, Sa, Telemecanique

ATV32HU30N4 Schneider Electric

Enhance your industrial automation systems with the ATV32HU30N4 variable frequency drive from Schneider Electric. Ideal for applications such as conveyors, HVAC systems, and packaging equipment. Purchase this item now at PLC2Day.
