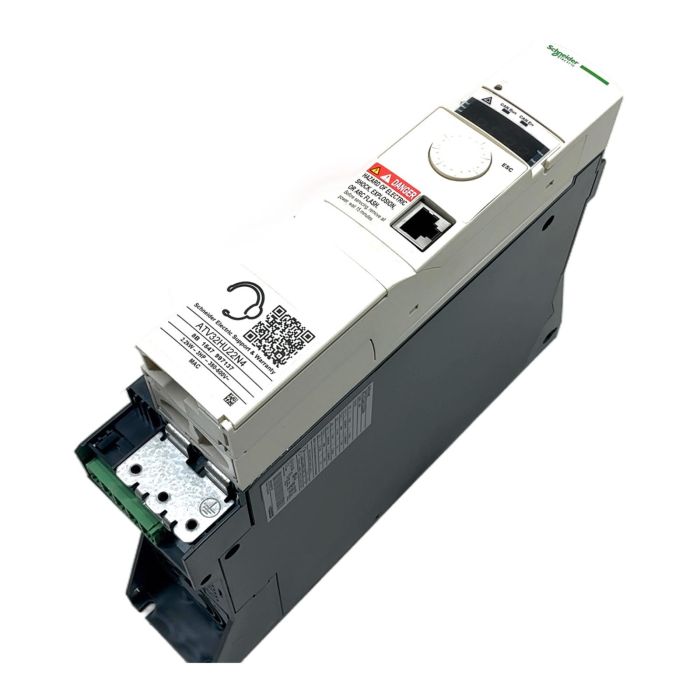

Schneider Electric Altivar 32 Variable Frequency Drive

Description

The ATV32HU22N4 is a compact and powerful variable frequency drive from Schneider Electric's Altivar 32 series. Designed for controlling 2.2kW three-phase motors, it operates on a 380-500V supply. This drive is renowned for its robustness, embedded safety features like Safe Torque Off (STO), and flexibility with integrated Modbus and CANopen communications. Its book-style format allows for space-saving installation in control cabinets, making it ideal for a wide range of machine applications.

Specifications

• Manufacturer: Schneider Electric
• Series: Altivar 32
• Model: ATV32HU22N4
• Power Rating: 2.2 kW / 3 HP
• Input Voltage: 380-500 V AC, 3-Phase
• Input Frequency: 50/60 Hz
• Output Current: 5.5 A
• Output Frequency: 0 to 599 Hz
• Enclosure Rating: IP20

Label Info

• Model: Altivar ATV32HU22N4
• Power: 2.2kW - 3HP
• Input: 380-500V, 50/60Hz, 8.7A max
• Output: 380-480V, 0-599Hz, 5.5A

Application

This drive is perfectly suited for applications in packaging, material handling, conveying, textiles, and general machine control where precise speed and torque control are required.

Country of Origin

Made in Indonesia.

CO2 Impact

Opting for this component helps avoid approximately 72.0 kg of CO2 emissions compared to manufacturing a new one, contributing positively to environmental sustainability.

Availability

This is an obsolete item, but available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, the ATV32 is often a suitable replacement for older series like the ATV31. However, you must verify the mounting dimensions, wiring, and programming parameters. The ATV32 offers more advanced features, so careful review of the migration manual is recommended for a smooth transition.

This drive comes with Modbus serial and CANopen communication protocols integrated. For other protocols like EtherNet/IP, Modbus TCP, Profibus DP, or DeviceNet, optional communication cards can be added to expand its connectivity capabilities.

STO stands for 'Safe Torque Off'. It is an integrated safety function that prevents the drive from generating torque in the motor, bringing it to a safe stop without needing external contactors. This helps in achieving machine safety standards like EN/ISO 13849-1 PL d and EN/IEC 61508 SIL 2.
