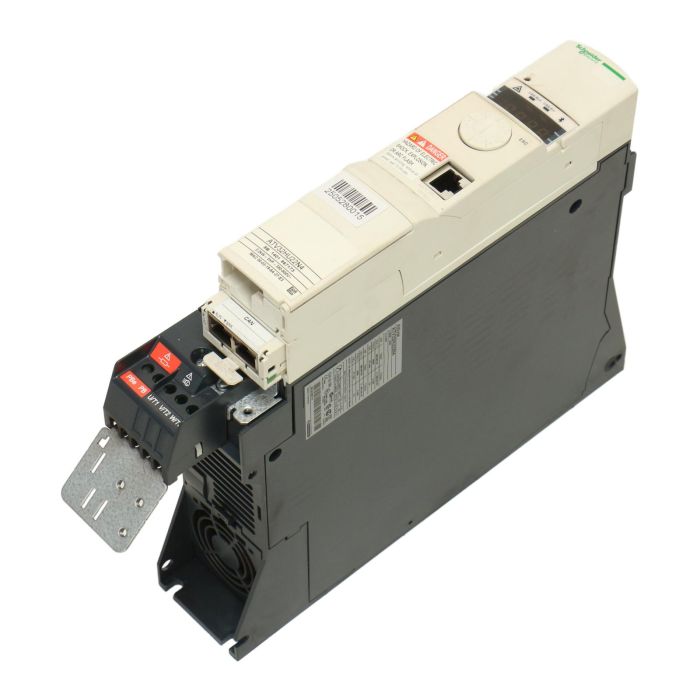

ATV32HU22N4 - Variable Speed Drive 2.2kW 3HP

Product Description

Variable speed drive ATV32 - 2.2 kw - 400 V - 3 phase - with heat sink

Product Specifications

Range of product: Altivar 32

Product or component type: Variable speed drive

Product destination: Synchronous motors, Asynchronous motors

Product specific application: Complex machines

Function available: -

Assembly style: With heat sink

Component name: ATV32

EMC filter: Class C2 EMC filter integrated

Network number of phases: 3 phases

Us rated supply voltage: 380...500 V - 15...10 %

Supply voltage limits: 323…550 V

Supply frequency: 50...60 Hz - 5...5 %

Network frequency: 47.5...63 Hz

Motor power kW: 2.2 kW at 380...480 V

Motor power hp: 3 hp at 380...480 V

Line current: 6.6 A for 500 V 3 phases 2.2 kW / 3 hp, 8.7 A for 380 V 3 phases 2.2 kW / 3 hp

Product Label Info

Model Code / Product Markings: ATV32HU22N4

EAN (GTIN-13): 3606480299865

Altivar, ATV32HU22N4, 2.2kW 3HP, V1.5 IE08, -

KW, Input, Output, U(V~), 380-500 3, 0...380-500 3, F(Hz), 50/60, 0..599, I(A), 8.7 max, 5.5

HP, Input, Output, U(V~), 380-500 3, 0...380-500 3, F(Hz), 50/60, 0..599, I(A), 5.5, 8.7 max

SCCR: for rating and protection refer to User Manual, Motor Overload Protection - class 10

N.m, Input Cu AWG14: 75°C 0.6, lb.in, 6.3, Output Cu AWG14: 76°C 10.7 to 0.8 6.2 to 7.1

II (2) GD, CE., 0000, IMERIB 10ATEX0015X, ✓ N998, UL LISTED 170M, IND.CONT.EQ. 224330

E116875, P, ME79 KCC-REISEK, ATV32HU22N4, 8B1401867173, Made in Indonesia, Telemecanique

Application

Variable speed drive suitable for complex machines and synchronous/asynchronous motors.

What are the key advantages of ATV32HU22N4?

This drive provides efficient motor control, precise speed regulation, and reliable performance.

Country of Origin

This product is manufactured in Indonesia.

Method of Application

Installation should be done by a qualified professional following the user manual guidelines.

Safety Instructions

Follow proper handling procedures and ensure correct grounding to prevent electrical hazards.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Schneider Electric
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the ATV32HU22N4 used for?

This part is typically used in industrial applications, providing precise motor control and speed regulation.

Is ATV32HU22N4 compatible with my system?

If you're using Schneider Electric control systems, especially in complex machine setups, this drive will likely be compatible. Contact us to verify.

Alternatives to ATV32HU22N4

If you're looking for a similar variable speed drive, consider other models from Schneider Electric or compatible brands in the market.
