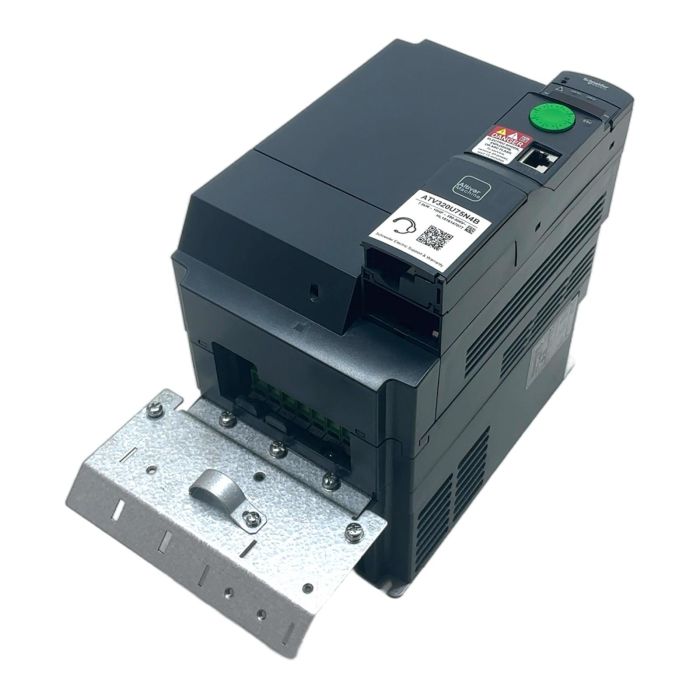

Schneider Electric Altivar Machine ATV320 Drive

Description

The ATV320U75N4B is a variable speed drive from Schneider Electric's Altivar Machine ATV320 series. It is engineered for original equipment manufacturers (OEMs) and provides a reliable and efficient solution for motor control in a wide range of applications. With its 7.5 kW power rating and a supply voltage of 380-500V, it is well-suited for demanding industrial environments. The drive features an integrated simple control panel, embedded safety functions (STO - Safe Torque Off), and standard communication protocols like Modbus and CANopen.

Specifications

• Manufacturer: Schneider Electric
• Model: ATV320U75N4B
• Power Rating: 7.5 kW (10 HP)
• Input Voltage: 3-Phase 380-500 V, 50/60 Hz
• Maximum Input Current: 26.5 A
• Nominal Output Current: 17 A
• Output Frequency: 0.1 to 599 Hz
• Enclosure: IP20
• Communication: Integrated Modbus and CANopen
• Form Factor: Book

Label Info

• Type: Altivar 320
• Part Number: ATV320U75N4B
• Serial Number: HL1816147077

Application

This drive is ideal for applications in packaging, material handling, conveying, textiles, and hoisting. Its compact 'Book' form factor allows for space-saving side-by-side mounting in electrical cabinets.

Country of Origin

Made in Indonesia.

CO2 Impact

Opting for this component saves approximately 180 kg of CO2 emissions compared to purchasing a new one, contributing to a more sustainable operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The ATV320U75N4B comes standard with Modbus serial and CANopen communication protocols, accessible via the RJ45 port. Additional communication modules for protocols like Ethernet/IP, Modbus TCP, PROFIBUS, and PROFINET can be added.

No, this drive is specifically designed for three-phase asynchronous and synchronous motors with a voltage supply of 380V to 500V AC. It is not suitable for single-phase motor operation.

The 'B' suffix in the Schneider Electric Altivar series typically indicates a 'Book' form factor, which is optimized for side-by-side mounting in control cabinets to save space.
