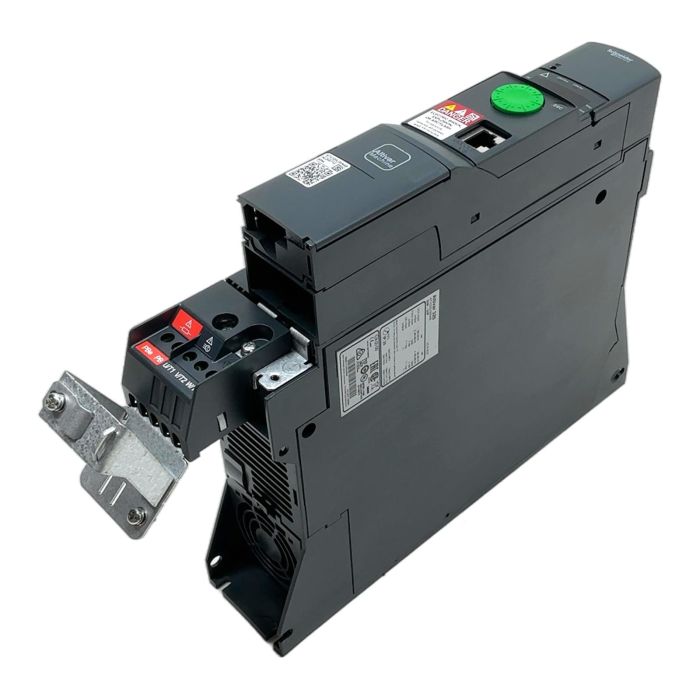

Schneider Electric Altivar Machine 320 VFD

Description

The ATV320U30N4B is a variable speed drive from Schneider Electric's Altivar Machine 320 series. It is specifically designed for Original Equipment Manufacturers (OEMs) and meets the requirements of simple and complex applications for three-phase synchronous and asynchronous motors. With its compact book-style form factor, it allows for easy installation and saves valuable cabinet space.

Specifications

• Manufacturer: Schneider Electric
• Series: Altivar Machine 320
• Model: ATV320U30N4B
• Power Rating: 3 kW / 3 HP
• Input Voltage: 380-500V AC, 3-Phase
• Input Frequency: 50/60 Hz
• Output Current: 7.1 A
• Communication Port: Modbus serial, CANopen
• Enclosure Rating: IP20

Label Info

• Type: Altivar 320
• Model: ATV320U30N4B
• Input: 380-500V, 11.1 A max
• Output: 0..380-480V, 7.1 A, 0..599 Hz

Application

This drive is ideal for a variety of industrial applications, including material handling, packaging, textiles, hoisting, and general machine control where precise motor speed and torque control are required.

Country of Origin

Made in Indonesia.

CO2 Impact

By purchasing this refurbished drive, you are helping to avoid approximately 92 kg of CO2 emissions compared to buying a new one. This saving is comparable to the emissions from driving a car for 460 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What communication protocols are supported by the ATV320U30N4B?

The standard ATV320U30N4B drive comes with integrated Modbus serial and CANopen communication protocols. Other protocols like EtherNet/IP, Modbus TCP, PROFIBUS, and PROFINET can be added via optional communication modules.

Yes, the Altivar Machine ATV320 series includes embedded safety functions, such as Safe Torque Off (STO), Safely Limited Speed (SLS), and Safe Stop 1 (SS1), making it suitable for applications requiring machine safety up to SIL 3 / PLe.

The 'book' or 'book-size' form factor allows the drives to be mounted side-by-side with minimal or no gap between them. This significantly reduces the required panel width, saving space and cost in control cabinet construction.
